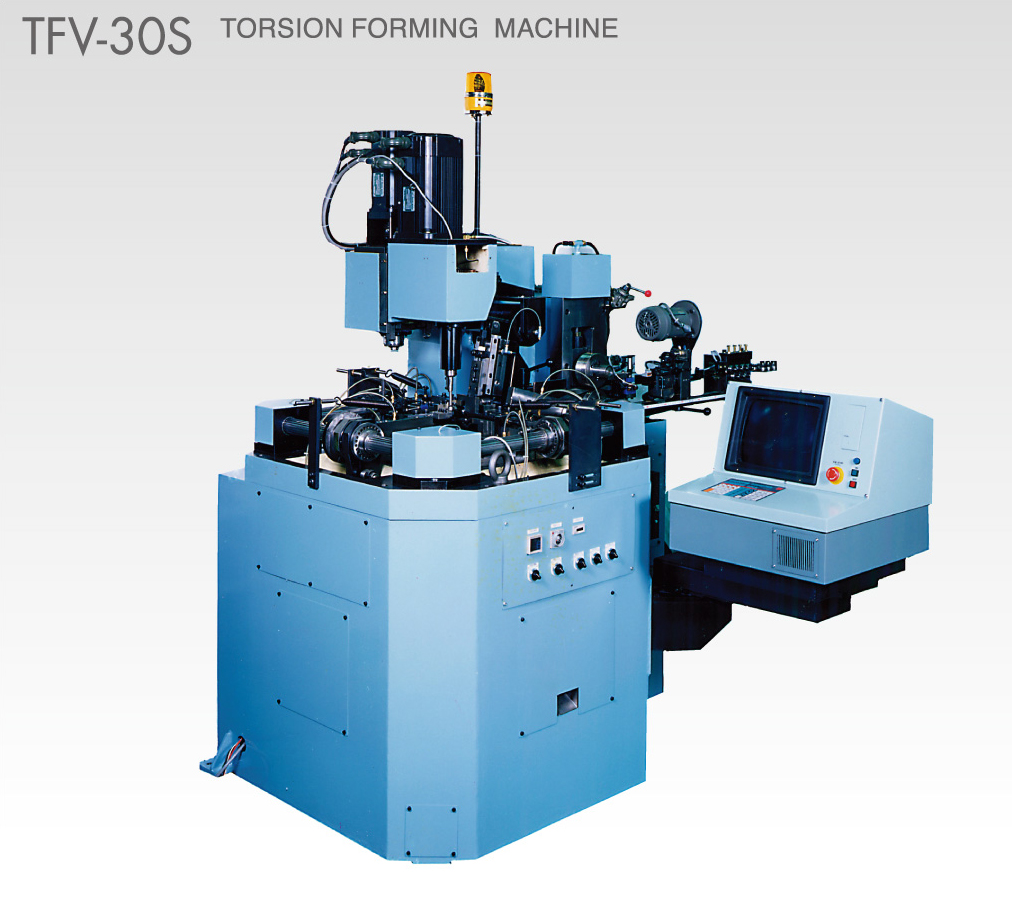

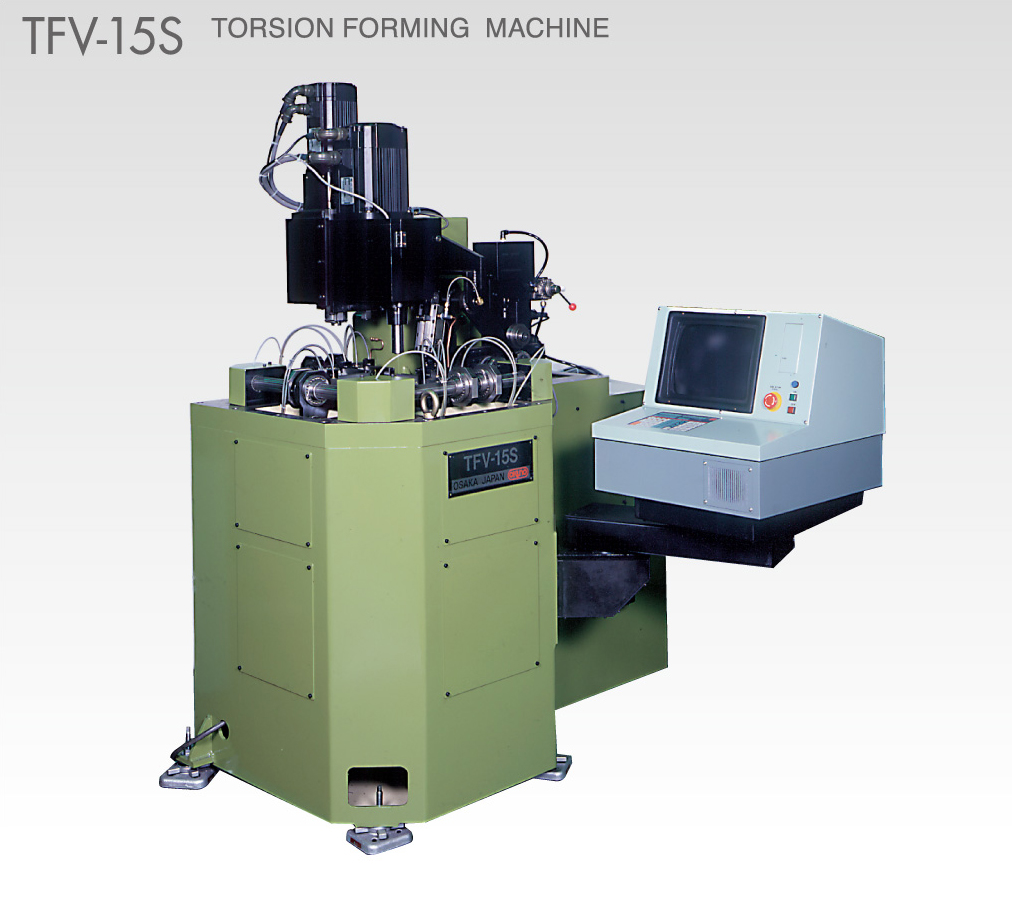

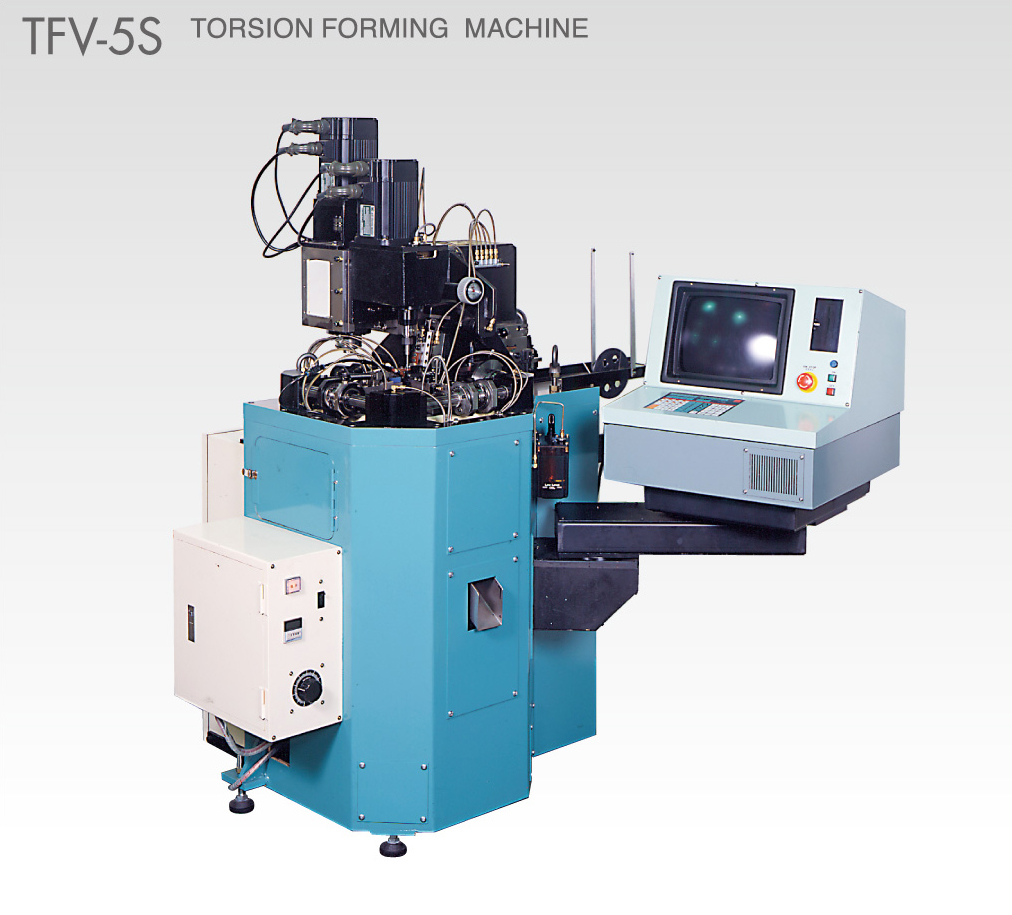

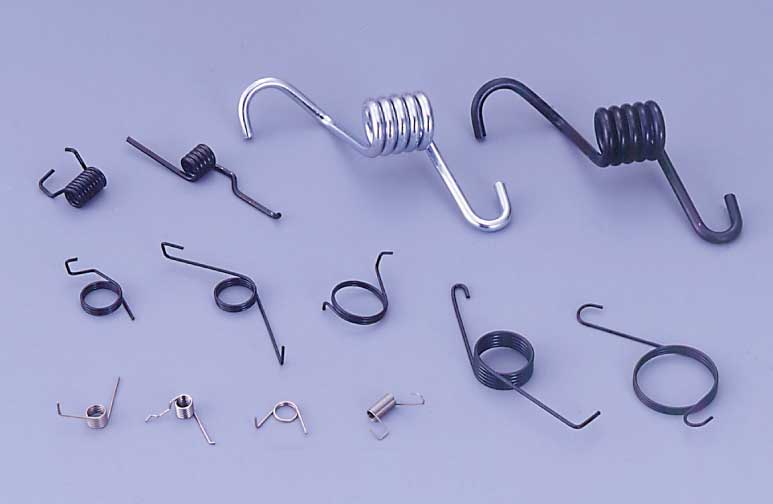

These are vertical type torsion spring formers that use CNC control. They
also use precision AC servo motors for spindle, pitch, wire feed, and cam
drive in order to produce complex sping configurations.These machines are
best for producing spring products made from nickel chrome wire coils,
luminous tungsten coils, or copper wire circuit breaker coils.
The optional device is necessary for the spring that is on blue back.
-
-
-
-

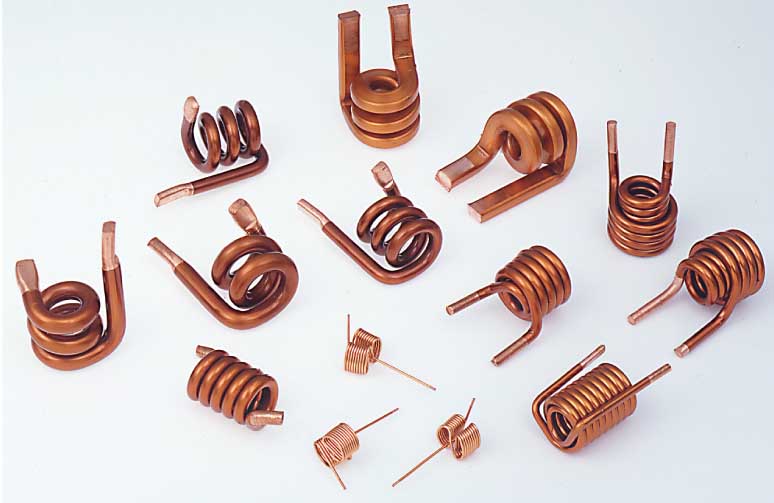

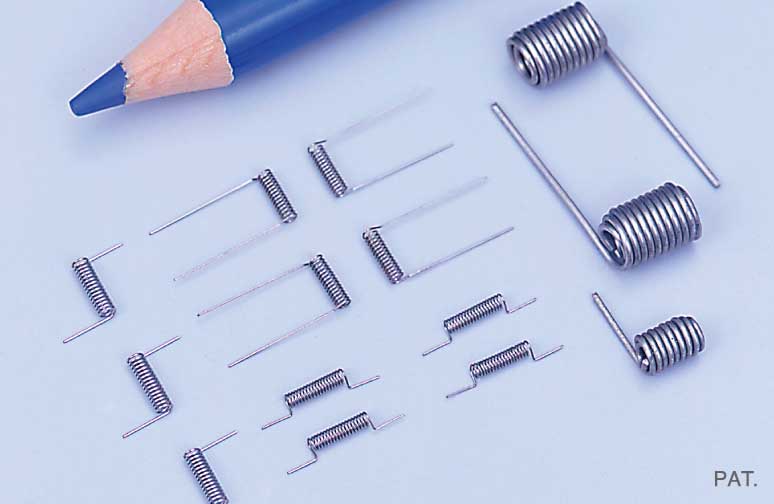

Motor Spring(Constant Pitch)
-
-
Copper Wire Coil (Ends Decoated)
-

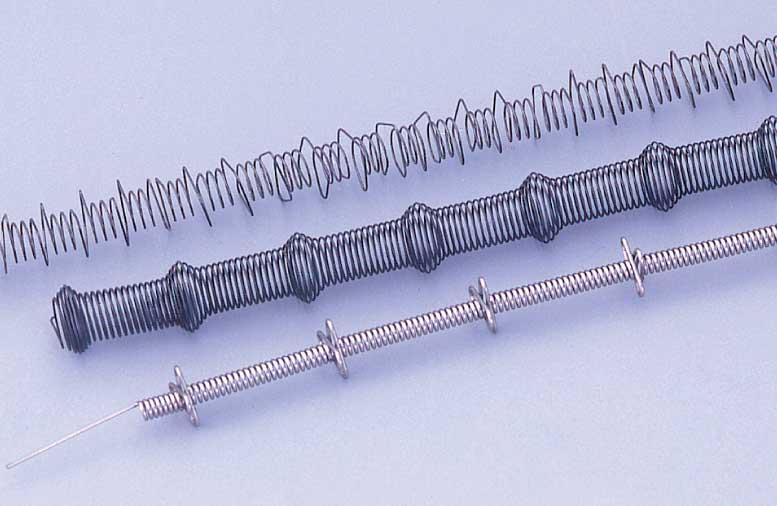

NICKEL-CHROM STEEL WIRE COIL
-
-
-
-

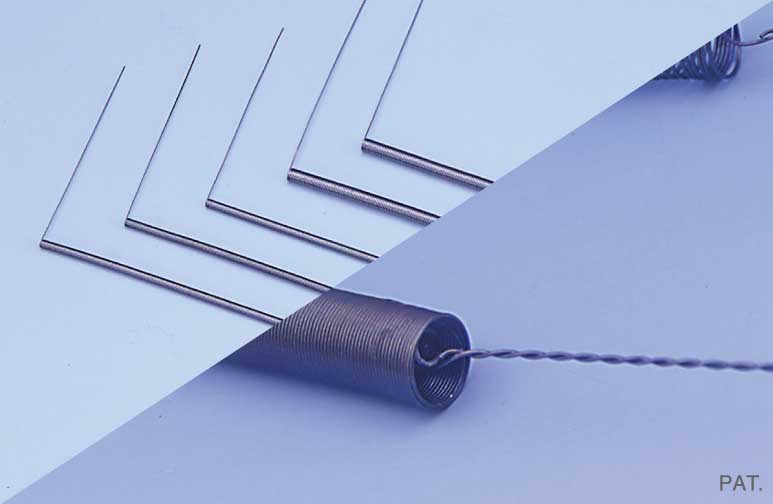

COPPER WIRE COIL WITH PARTIAL DECOATED
Item |
TFV-5S |
TFV-15S |
TFV-30S |
Wire diameter to be usd |
φ0.05~0.5mm |
φ0.5~1.5mm |
φ0.8~3.0mm |
Max.coilling outer diameter |
φ30mm |
φ50mm |
φ80mm |
Lead leg length |
80mm |
110mm |
150mm |
Max. rpm. spindle axis |
0~3000rpm |
0~500rpm |
0~500rpm |
Accurracy of spindle control |
0.3° |
0.3° |
0.3° |
Winding direction |
Left/Right |
Left/Right |
Left/Right |
Pitch stroke |
50mm |
70mm |
90mm |
Accuracy of Pitch control
|
0.01mm |
0.01mm |
0.01mm |
Moters
pindleaxis
W.Feed axis
Pitchi axis
Cam axis |
0.7kw
0.3kw
0.45kw
0.85kw |
1.8kw
0.85kw
0.85kw
2.9kw |
2.9kw
1.3kw
0.85kw
4.4kw |
Machine dimension |
1420(W)×840(L)×1700(H) |
1600(W)×1470(L)×1800(H) |
1600(W)×1470(L)×2000(H) |
Installation space (ref) |
1.5m×2.5(min) |
1.8m×3.0(min) |
2.0m×3.5(min) |
