The optional device is necessary for the spring that is on blue back.
-

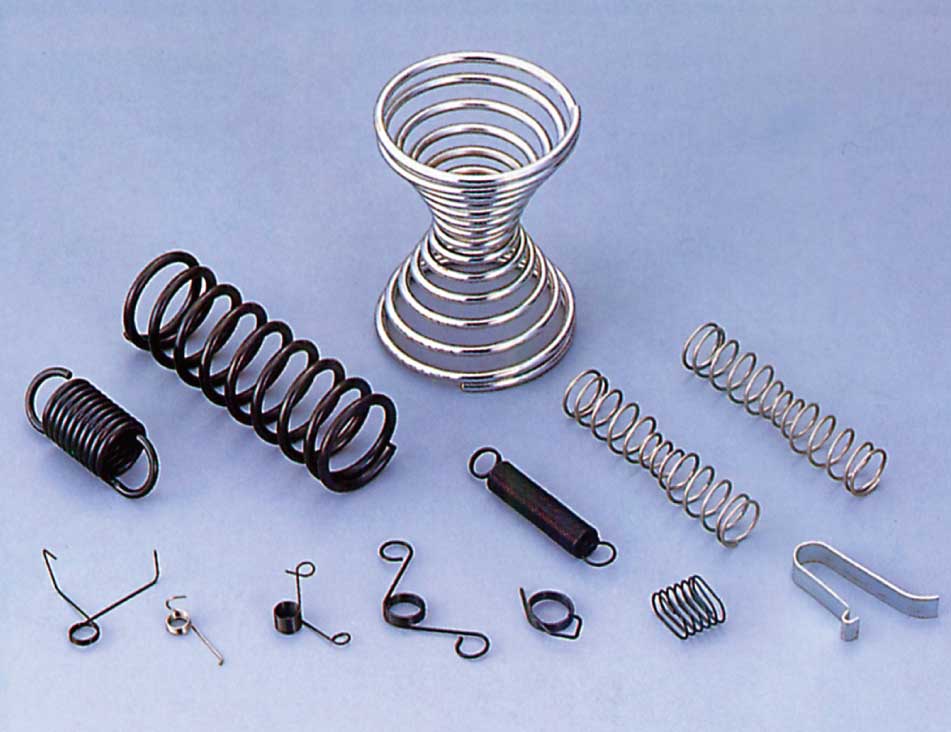

Ring(Round Wire)
-
No Pitch Coil
-
Compression Spring(Straight)
-
Compression Spring(Formed)
-

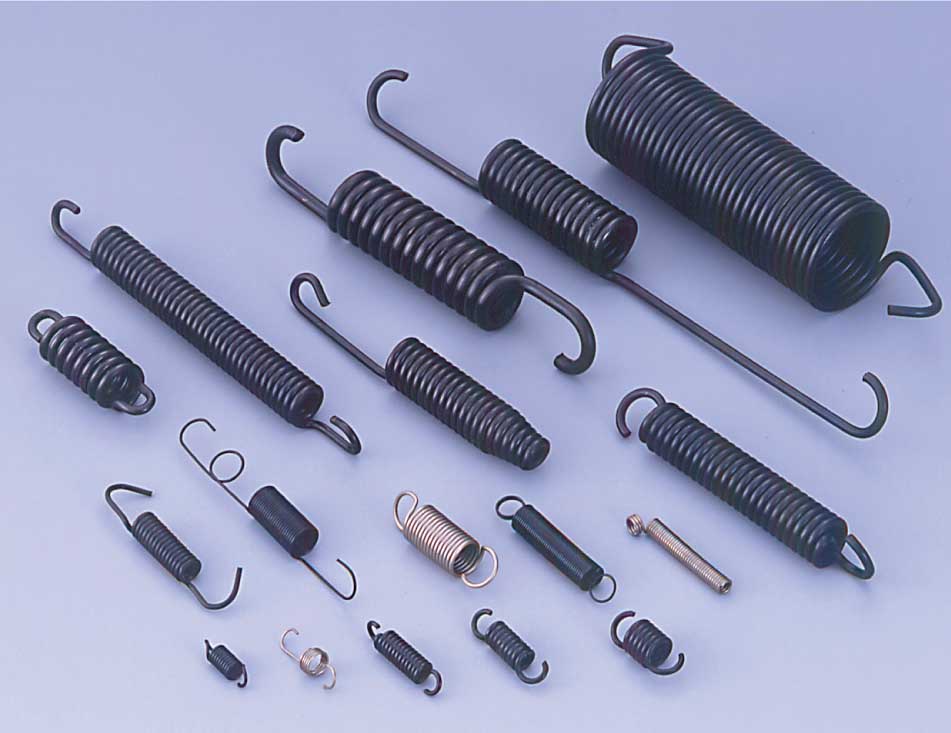

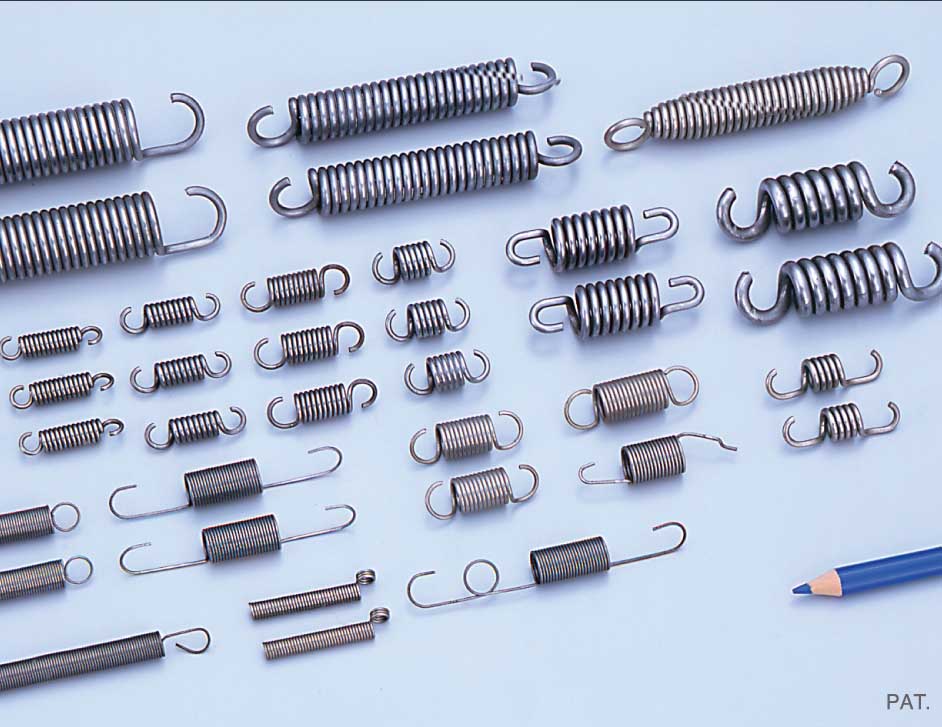

Extension Spring (One Side Hook)
-
Extension Spring
-
Torsion Spring
-
Motor Spring(Constant Pitch)
-
Formed Wire Spring
-
Flat Wire Spring
-

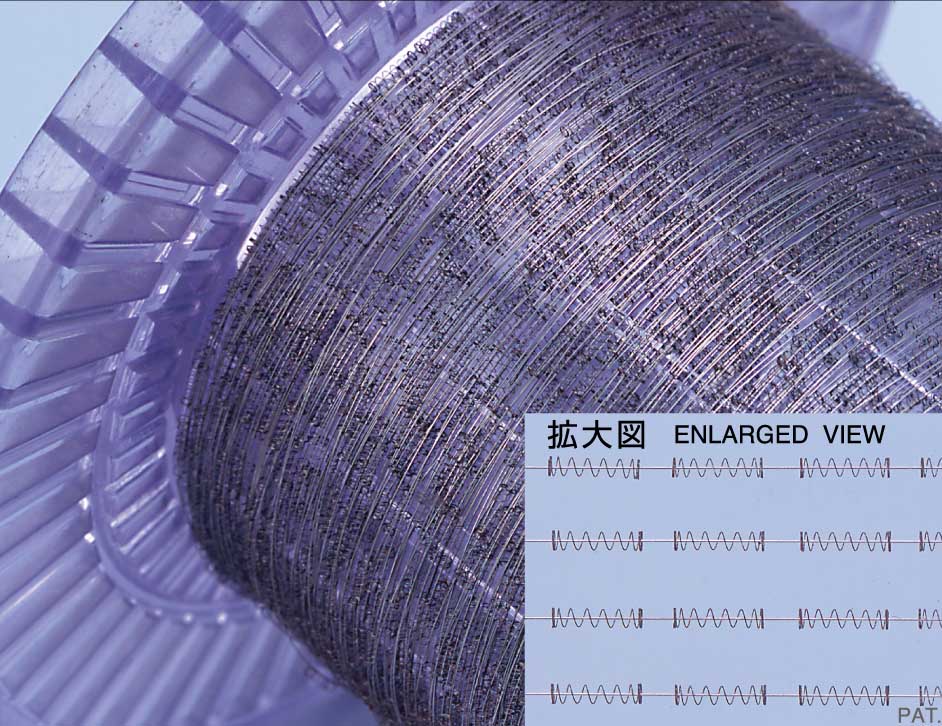

Tungsten Coil(Filament)
-
Oval Coil Spring
-
Control Tube
-
Copper Wire Coil (Ends Decoated)

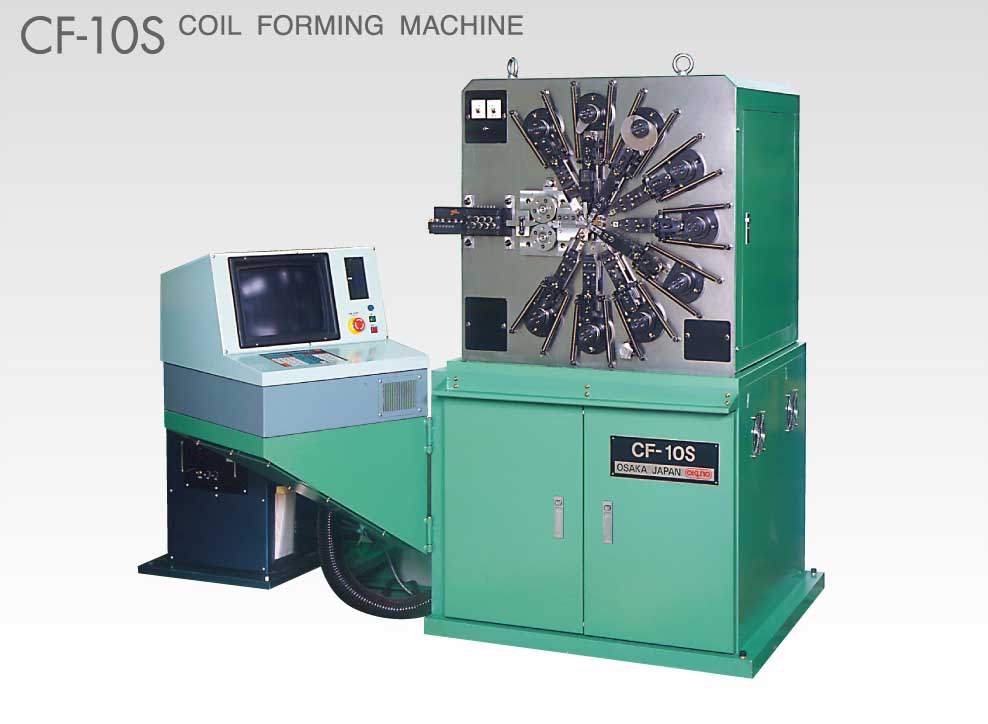

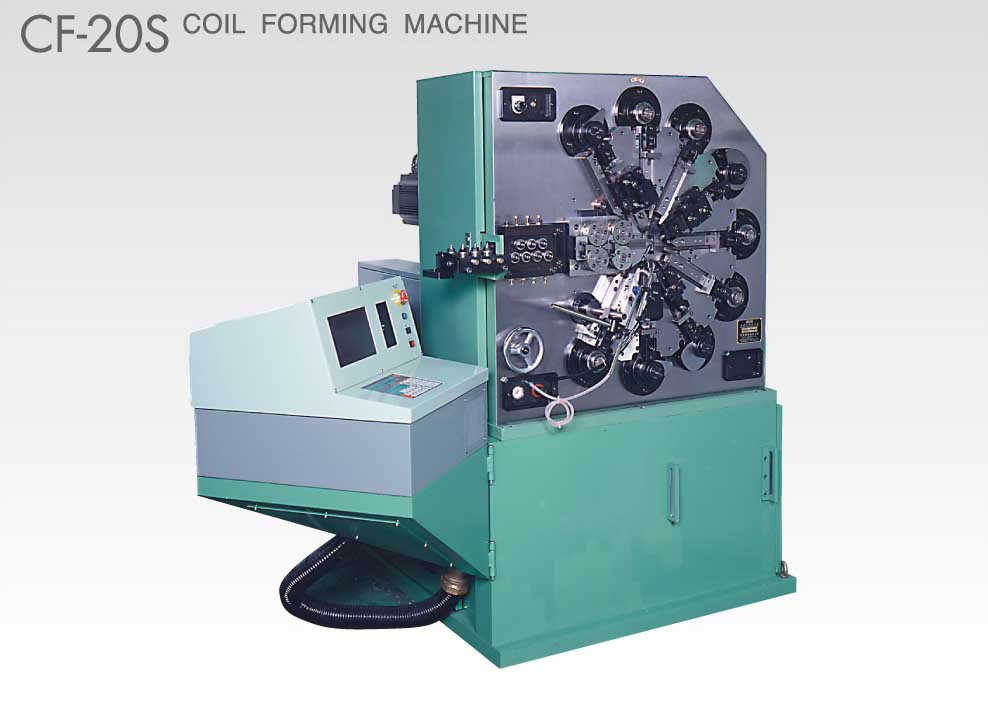

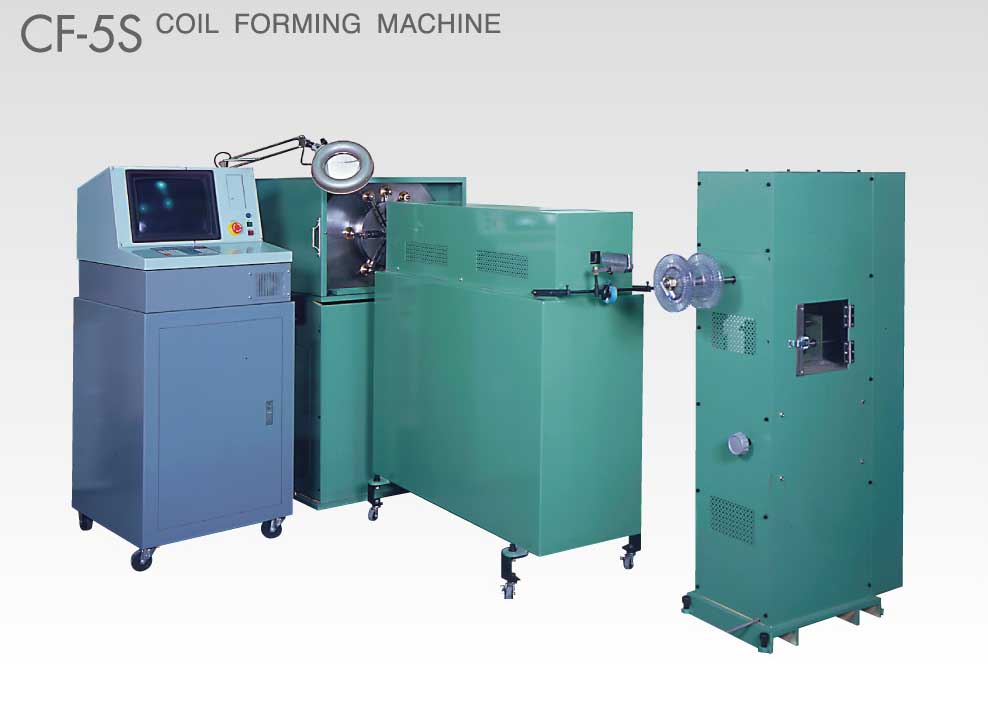

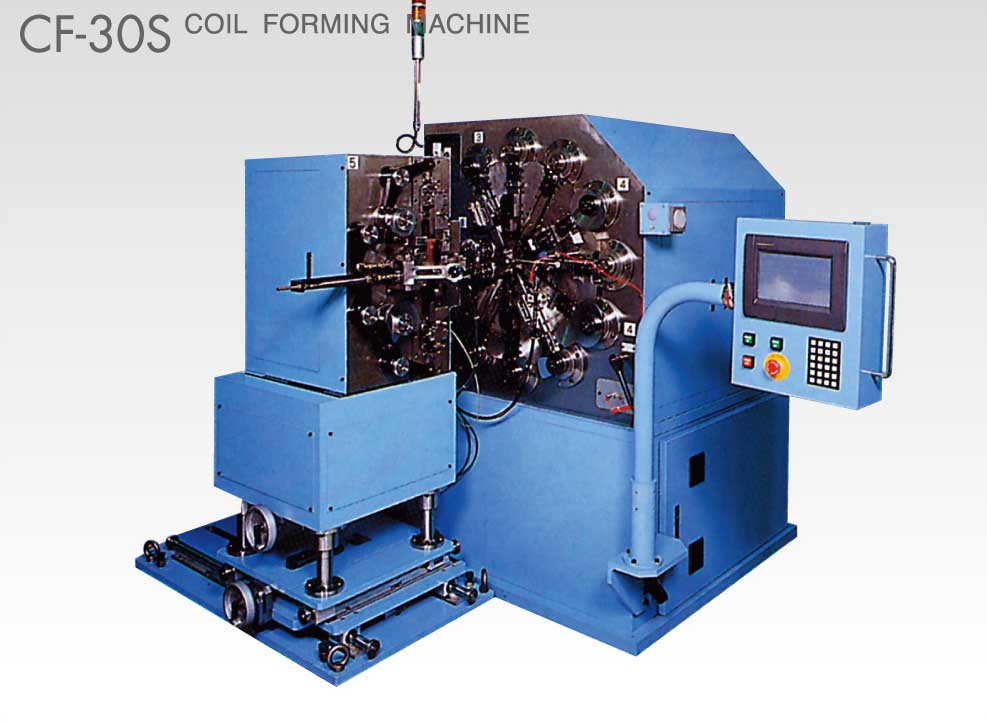

Item | CF-5S | CF-10S | CF-20S | CF-30S |
---|---|---|---|---|
Wire diameter to be used | φ0.05~0.5mm | φ0.3~1.0mm | φ0.6~2.0mm | φ0.8~3.0mm |
Wire feeding speed | 80m/min.(Max) | 80m/min.(Max) | 80m/min.(Max) | 80m/min.(Max) |
Accurcy of wire feeding | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
Max.wire feed length | Free | Free | Free | Free |
Max.coilling outer diameter | φ15mm | φ35mm | φ45mm | φ45mm |
Motor W.feed axis Pitch axis Cam axis |
0.3kw 0.2kw 1.3kw |
1.3kw 0.46kw 2.9kw |
3.0kw 0.8kw 4.0kw |
4.0kw 0.8kw 4.0kw |
Machine dimension | 1350(W)×850(L)× 1250(H) | 1500(W)×900(L)× 1600(H) | 1700(W)×1250(L)× 1750(H) | 1700(W)×1250(L)× 1750(H) |
Installation Space(ref) | 3.0m×1.5m(min) | 3.3m×1.8m(min) | 3.5m×2.0m(min) | 3.5m×2.0m(min) |
