Our MCS and MSW machines were developed to form motor springs used in seat belt , cord retractor, and other similar mechanisms. They can even form a retainer ring around the motor spring as part of the process. These machines can be packaging or assembly operations.

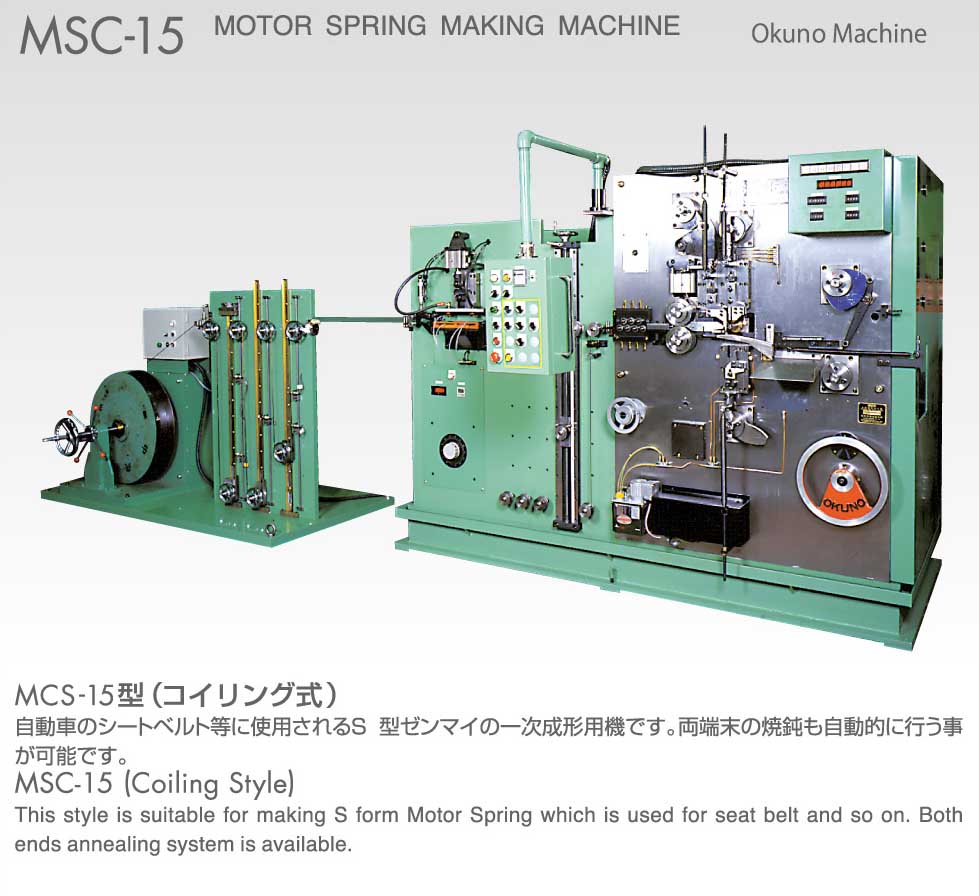

・MSC-15 (Coiling Style)

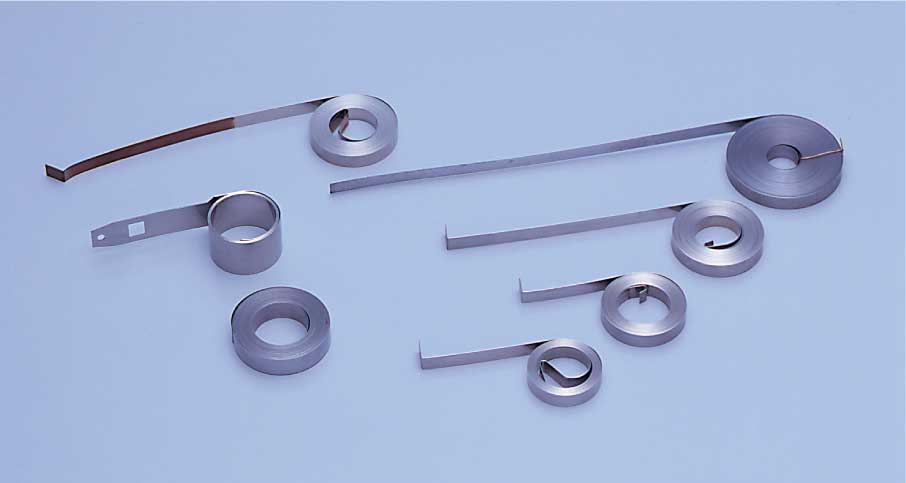

This style is suitable for making S form Motor Spring which is used for seat belt and so on. Both ends　annealing system is available.

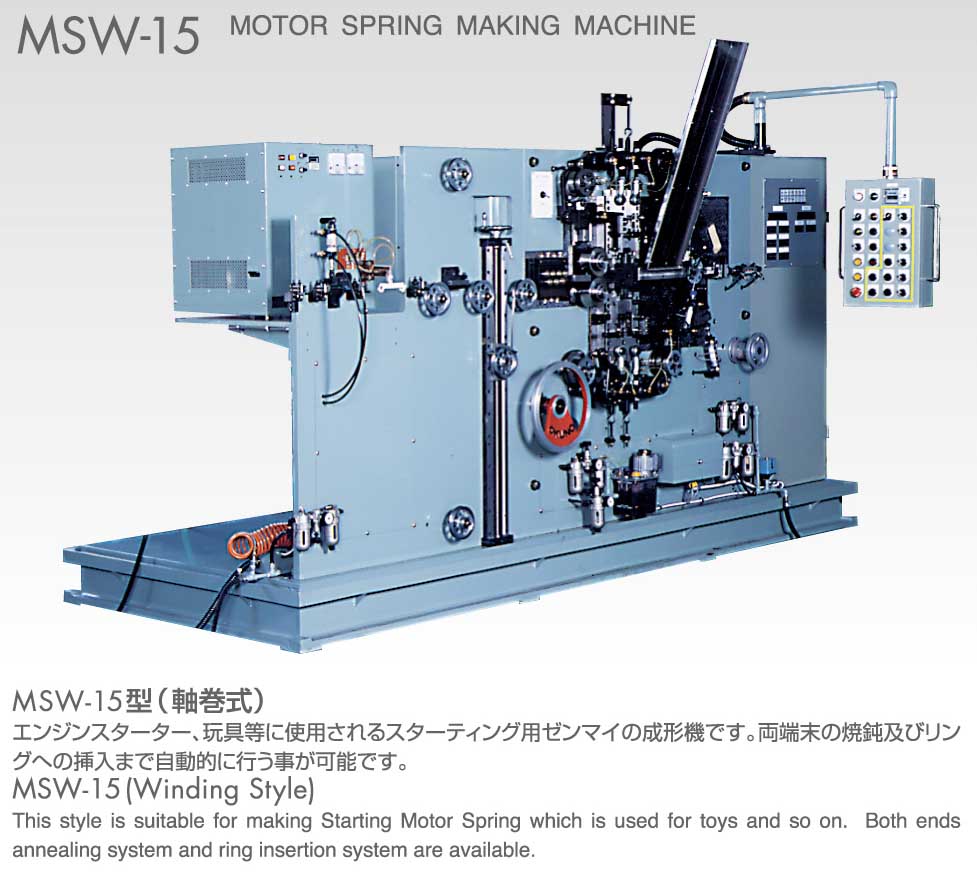

・MSW-15 (Winding Style)

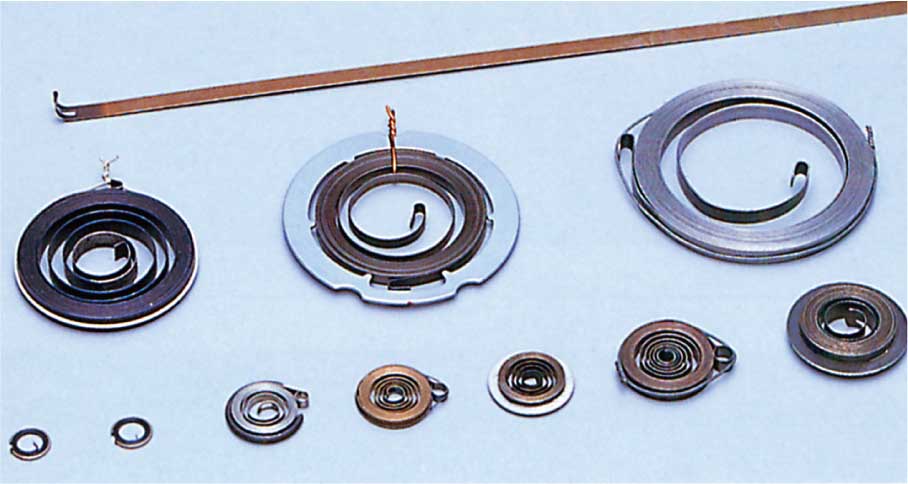

This style is suitable for making Starting Motor Spring which is used for toys and so on. Both ends　annealing system and ring insertion system are available.





Item MSC-15 MSW-15
Material size capacity 0.2～0.6mm(thickness) 3.0～15.0mm(width) 0.2～0.6mm(thickness) 3.0～15.0mm(width)
Max.wire feed length 10000mm 5000mm
Capa. of high freqeency annealr 5kw 5kw
Wire feed motor 3kw 3kw
End forming motor 2.2kw 2.2kw
Winding motor - 0.6kw
Machine dimension 3000(W)×1200(L)×1900(H) 3600(W)×1400(L)×1700(H)
