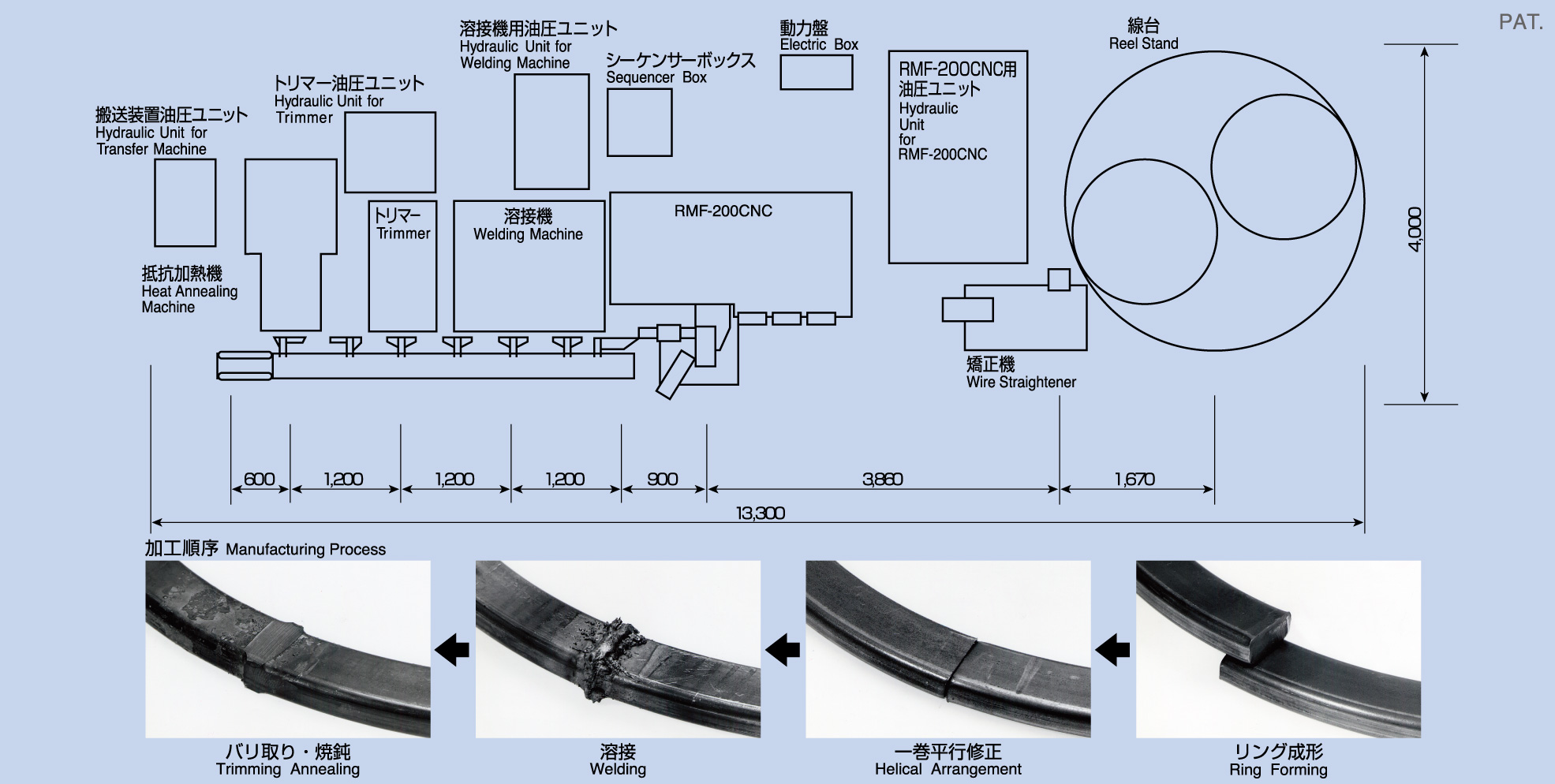

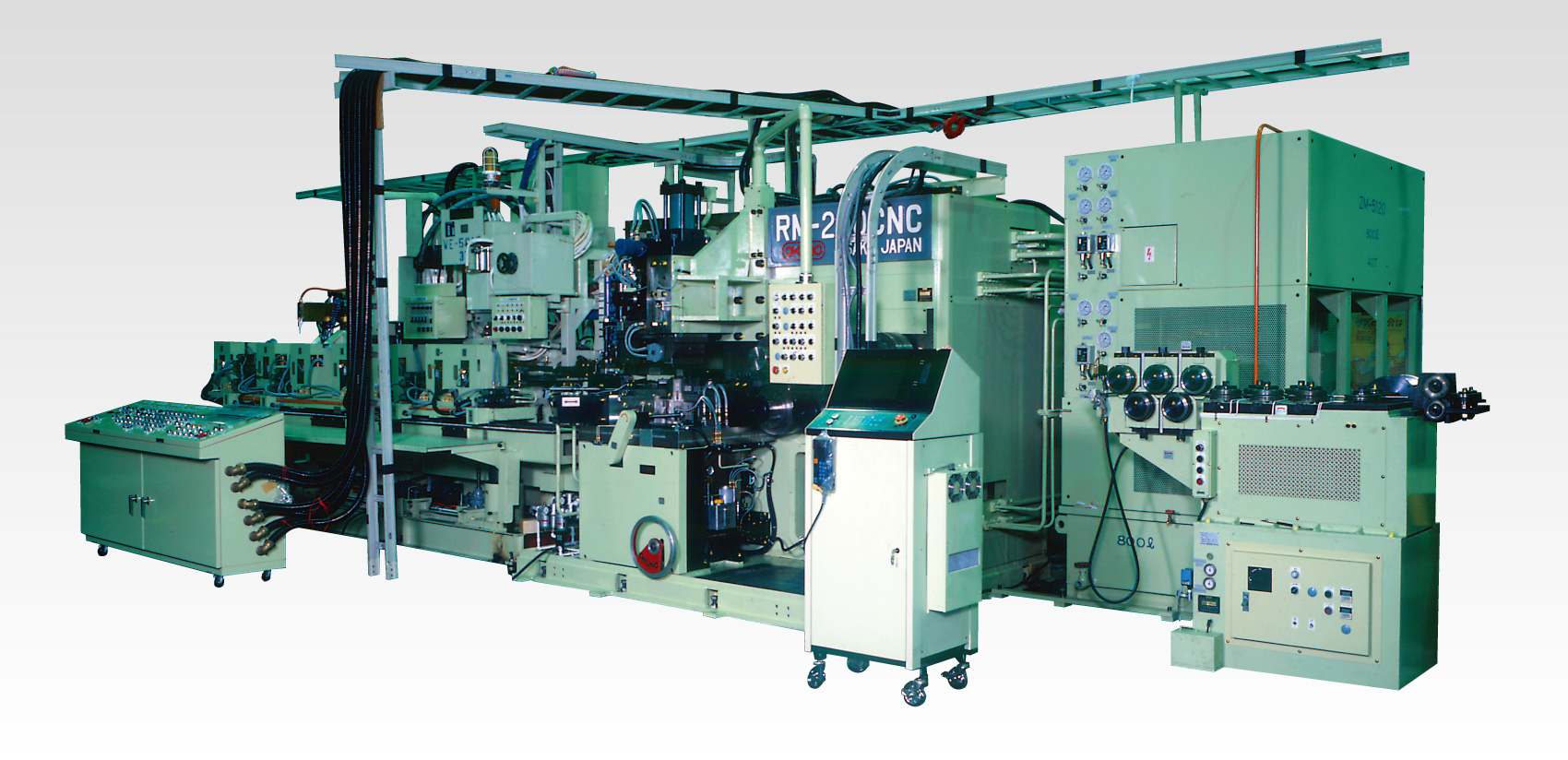

The purpose of this linear equipment is to make big size flat ring. This big size flat ring is made from square wire. And welding & de-burring & annealing process will be done after coiling by using the automatic transfering equipment.









Item RMF-120CNC RMF-200CNC
Sectional area of wire to be usd 120㎟ 300㎟
Max.coilling outer diameter φ350mm φ350mm
Cutting power 20t 24t
Max.wire feed length Free Free
Driving way Oil spressur120kg/㎠ Oil spressur120kg/㎠
Main motor
 11kw 11kw
Machine dimension 2300(W)×2600(L)×2200(H) 2500(W)×2600(L)×2300(H)
