We prepare various option devices to be able to comply with the demand of the users. We introduce a part of those.There are various option devices as well as these,please refer to us without hesitation.

PACKAGING EQUIPMENT

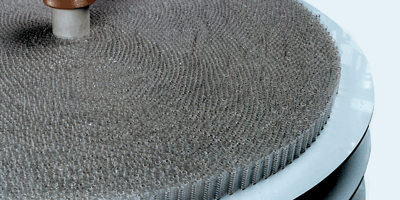

●TAPE PACKAGING


The taping system packages springs in a tape roll so they can be easily integrated into automated production lines. The tape packaging machine automatically sandwiches springs between two vinyl tapes in a roll configuration.

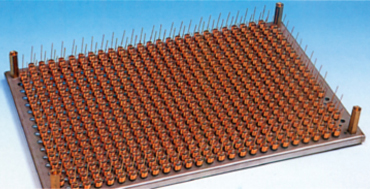

●PALLET PACKAGING

The pallet packaging system loads springs into compartmentalized pallets for easy integration into automated assembly systems. Springs are loaded into pallets by a robot and the pallets are automatically changed when full.

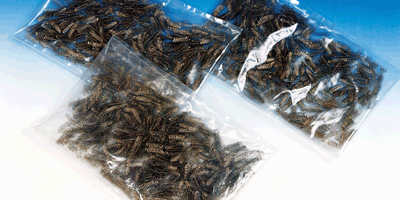

●BAG PACKAGING

The bag packaging system automatically counts the springs and places them in bags. Springs can be automatically packaged in bags after forming, grinding, or tempering.

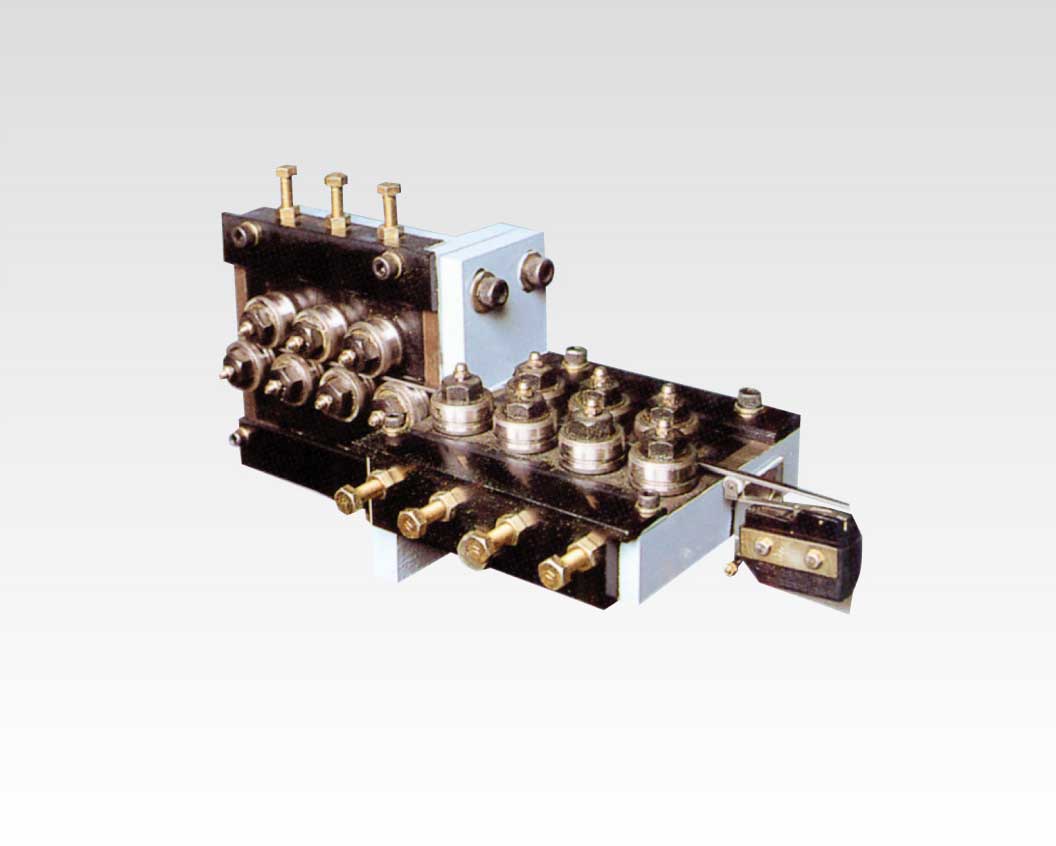

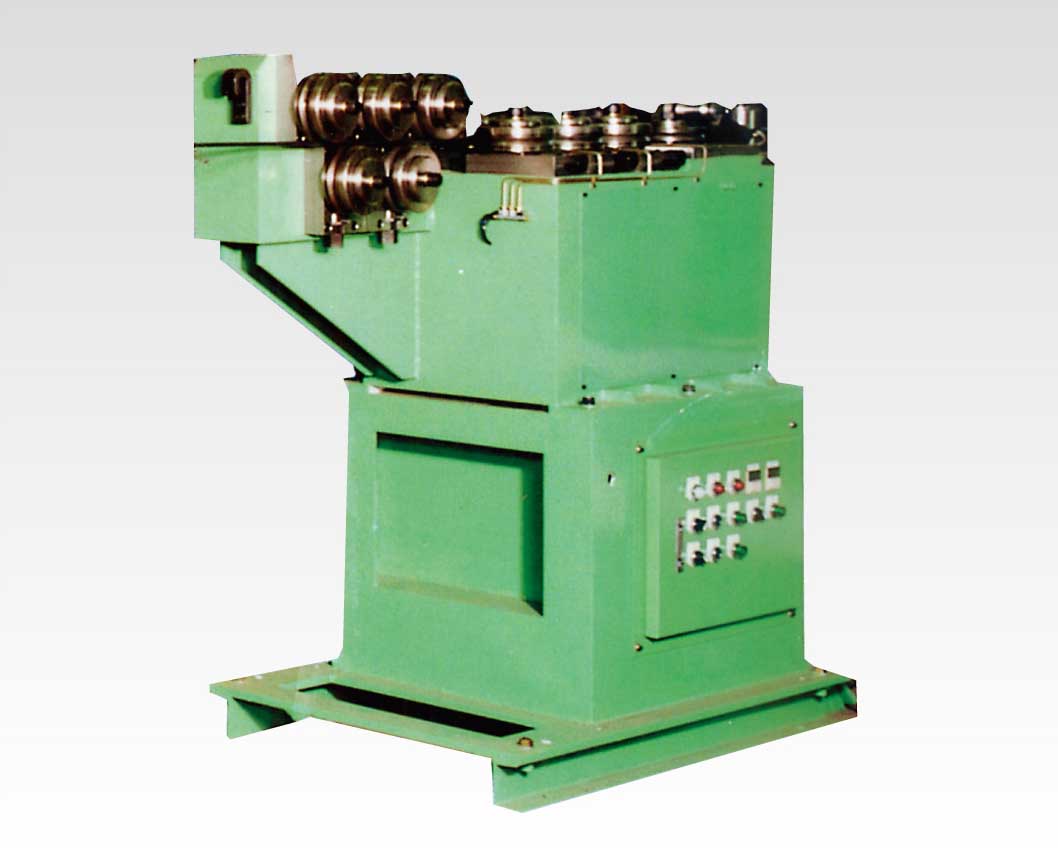

WIRE STRAIGHTENER

The wire straightener uses multiple sets of rollers to straighten wire in the vertical and horizontal axes. Machinea used for strraightening large diameter wire use supplemental force-feed pinch rollers.

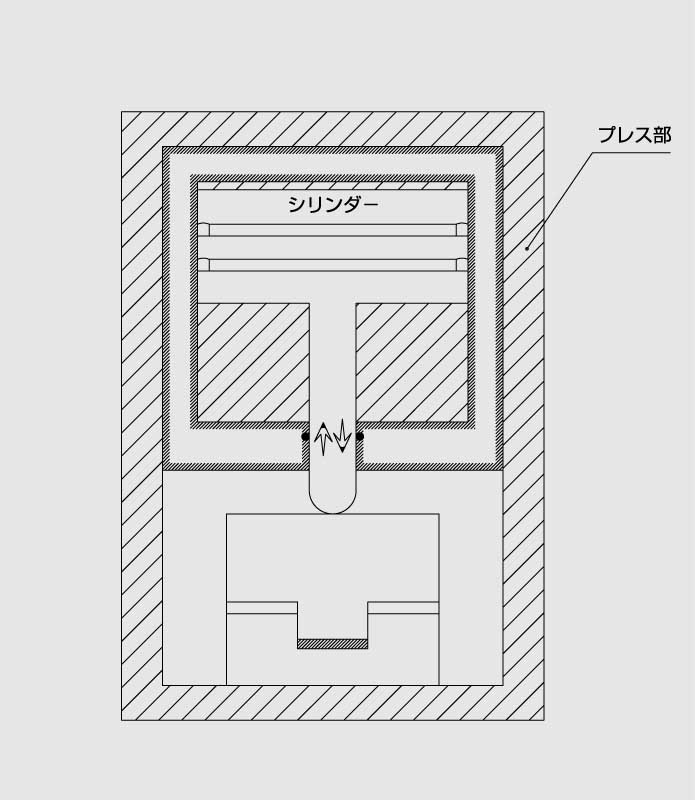

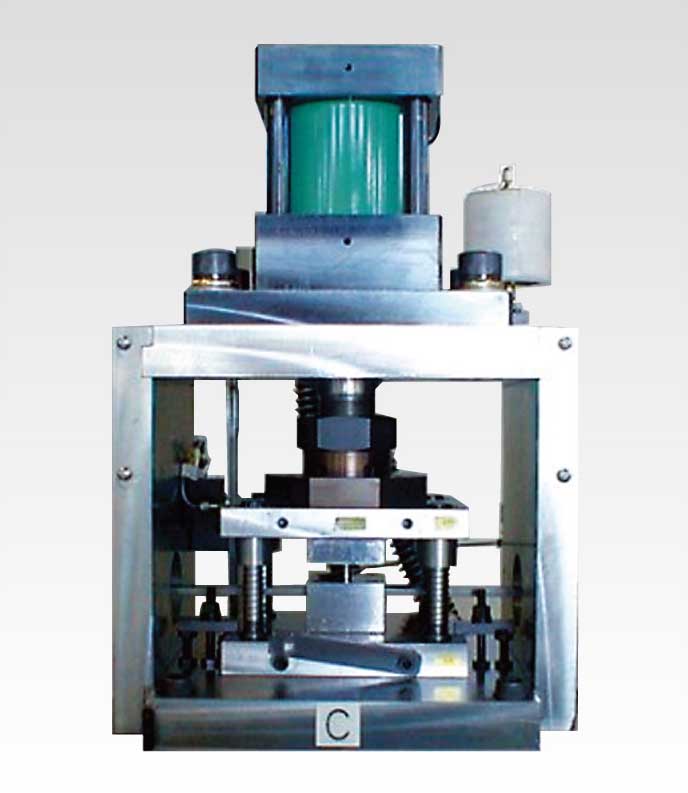

PRESS UNIT (OIL HYDRAULIC TYPE)

The ability of press can be changed by the oil hydraulic unit and oil hydraulic cylinder size. Standard die-set can be used on this press device.

TRANSFER UNIT

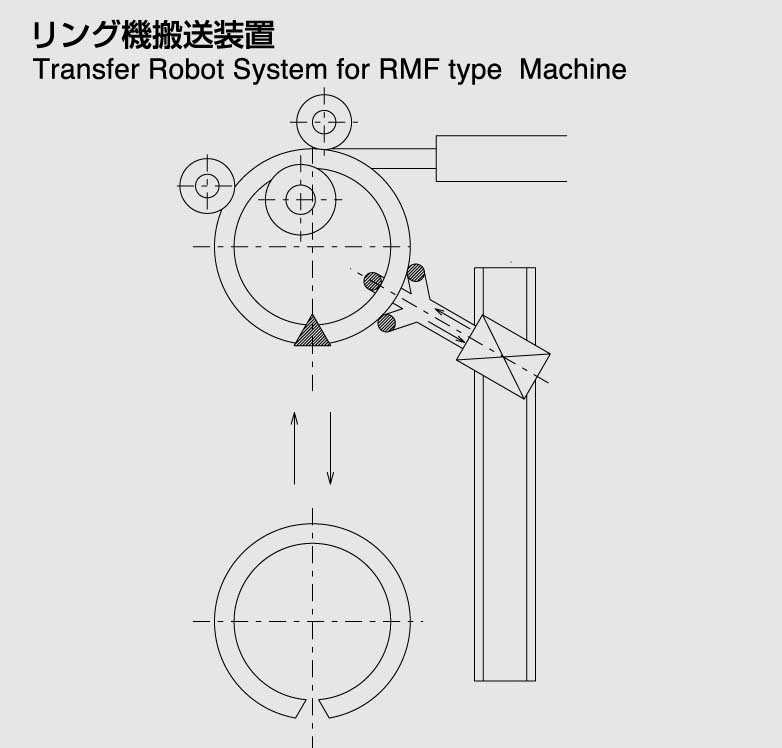

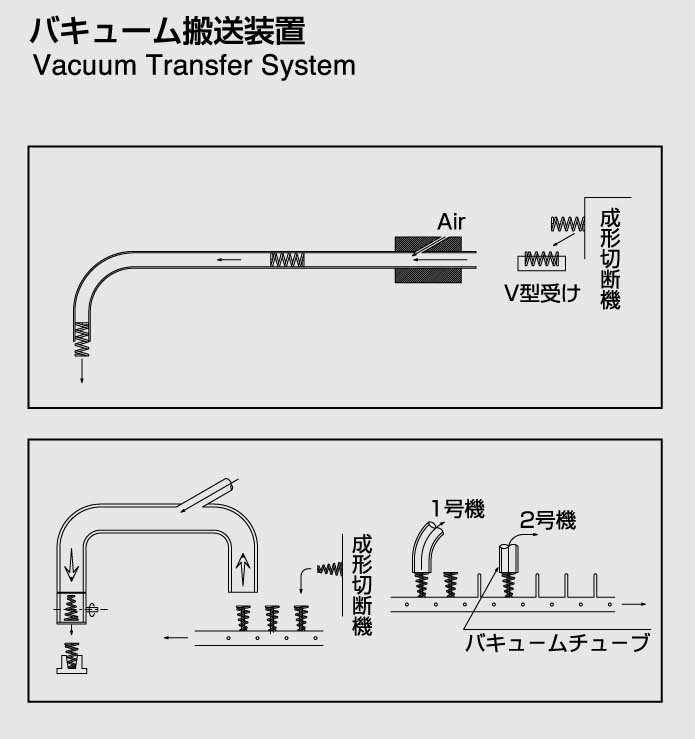

There are many kinds of transfer system. For example, Transfer Robot System for RMF type Flat Ring Making Machine, Vacuum Transfer System for small spring, etc.

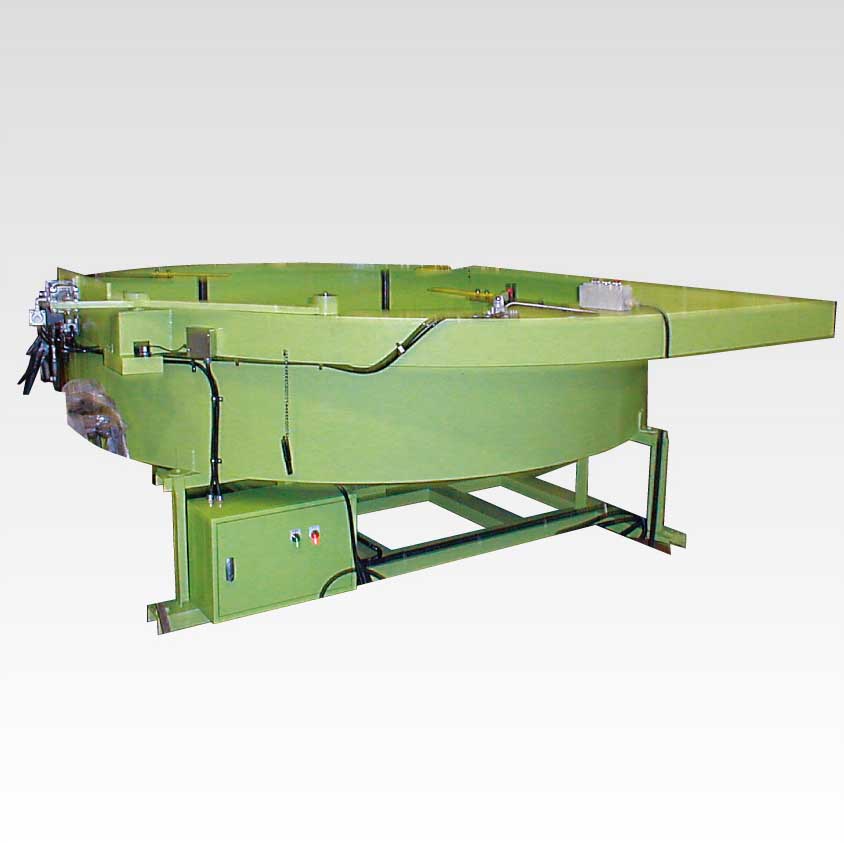

AUTOMATIC WIRE STAND

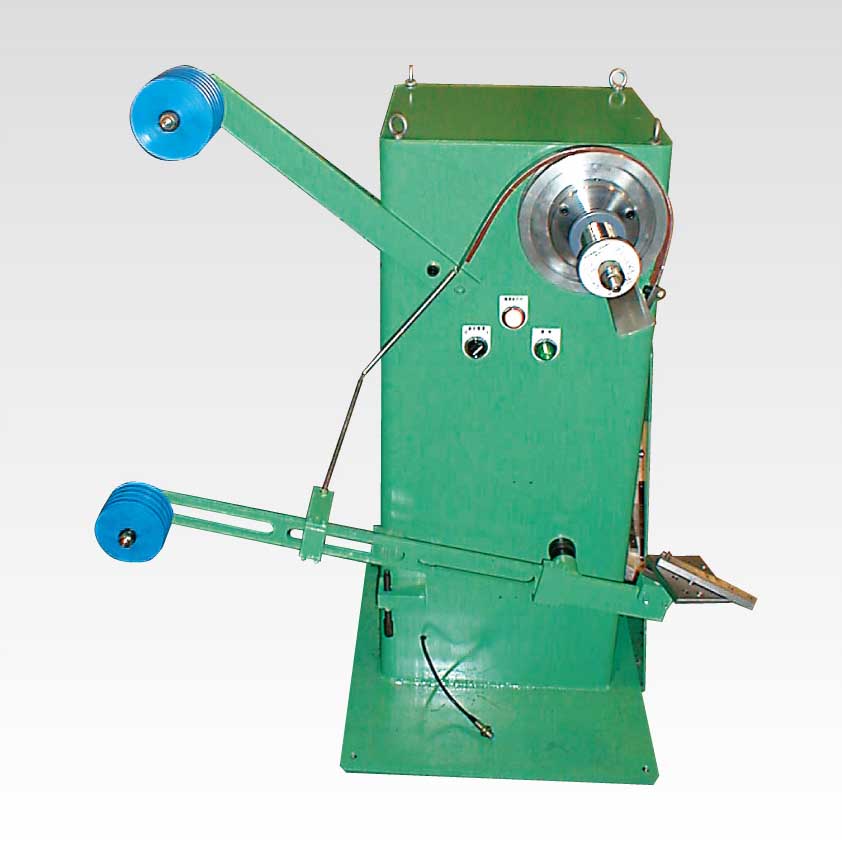

The automatic wire stand feeds wire to the spring forming or coiling machine. The wire stand's turntable speed is automatically adjusted through a lever which monitors payoff tension.

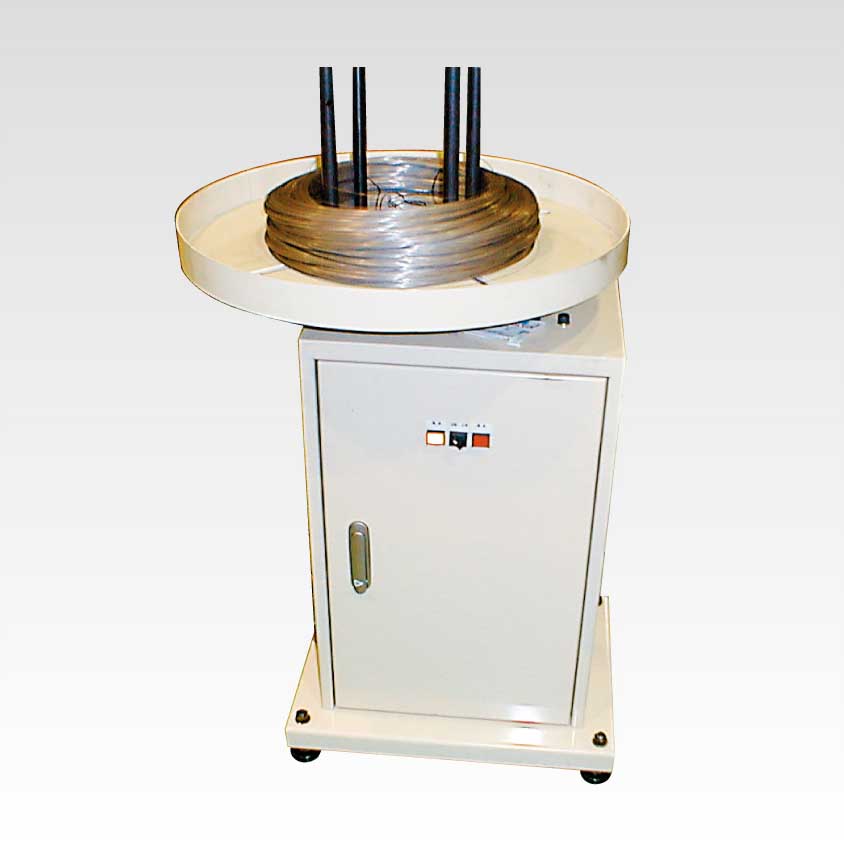

● SMALL SIZE WIRE STAND

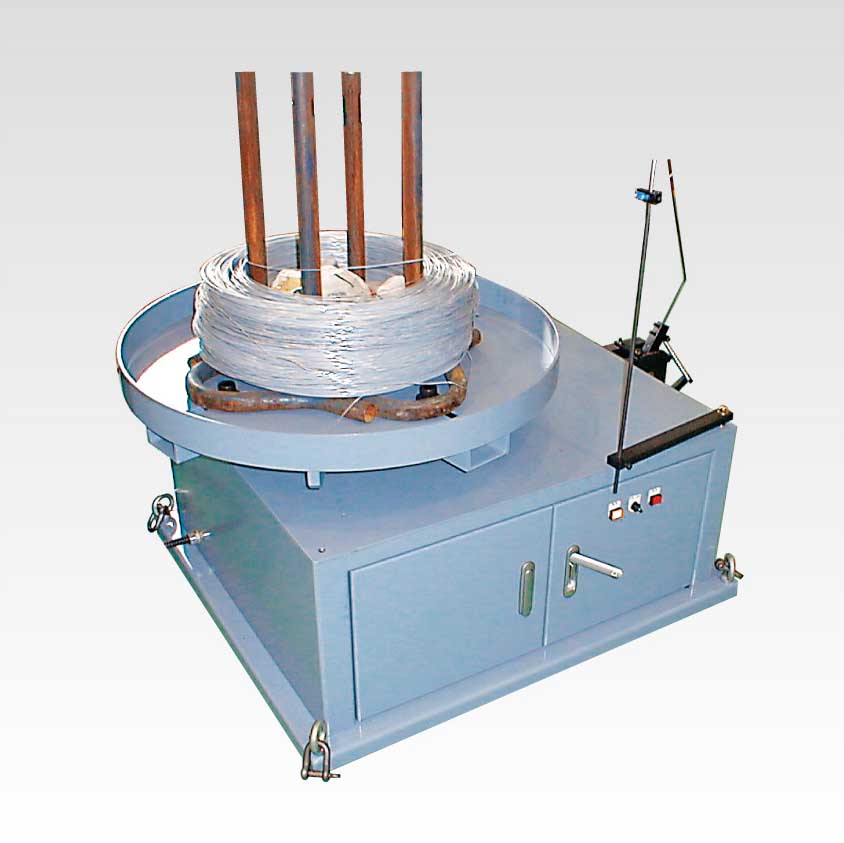

●CARRIER TYPE WIRE STAND

Wire is placed on the turntable-type carrier and payed-off as is.


●OIL TEMPERED WIRE STAND

Oil tempered wire is usually of a large diameter and heat treated in a straight configuration, so handling poses some danger. The oil tempered wire stand uses a special frame to aid in wire handling.

●BOBBIN HOLDFR WIRE STAND
