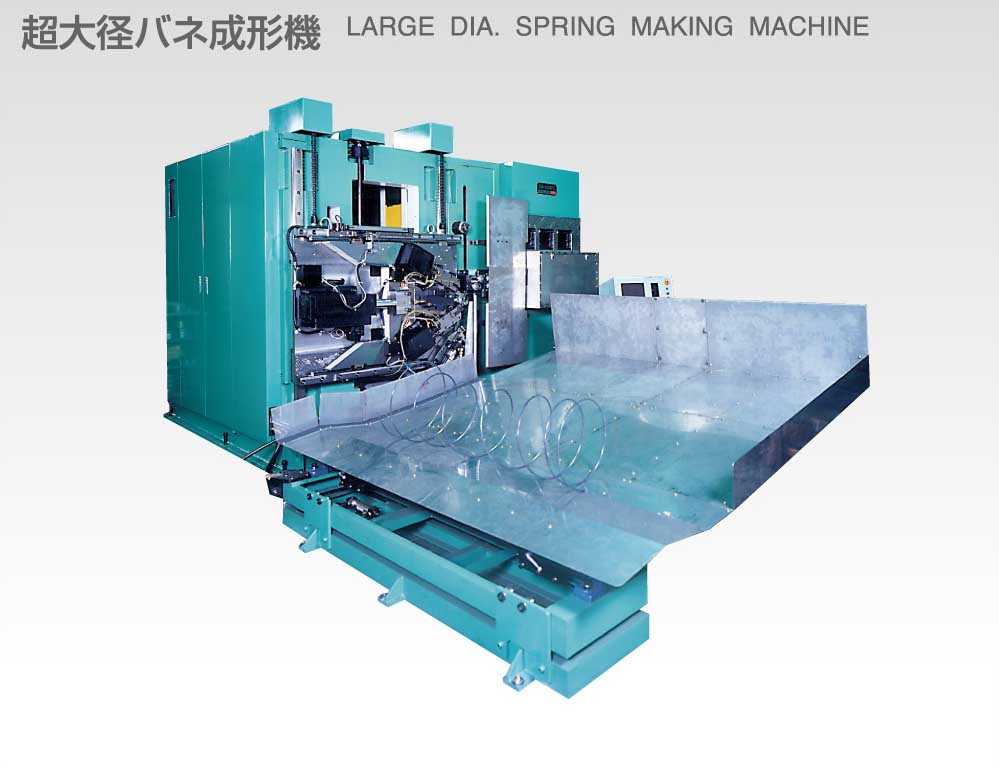

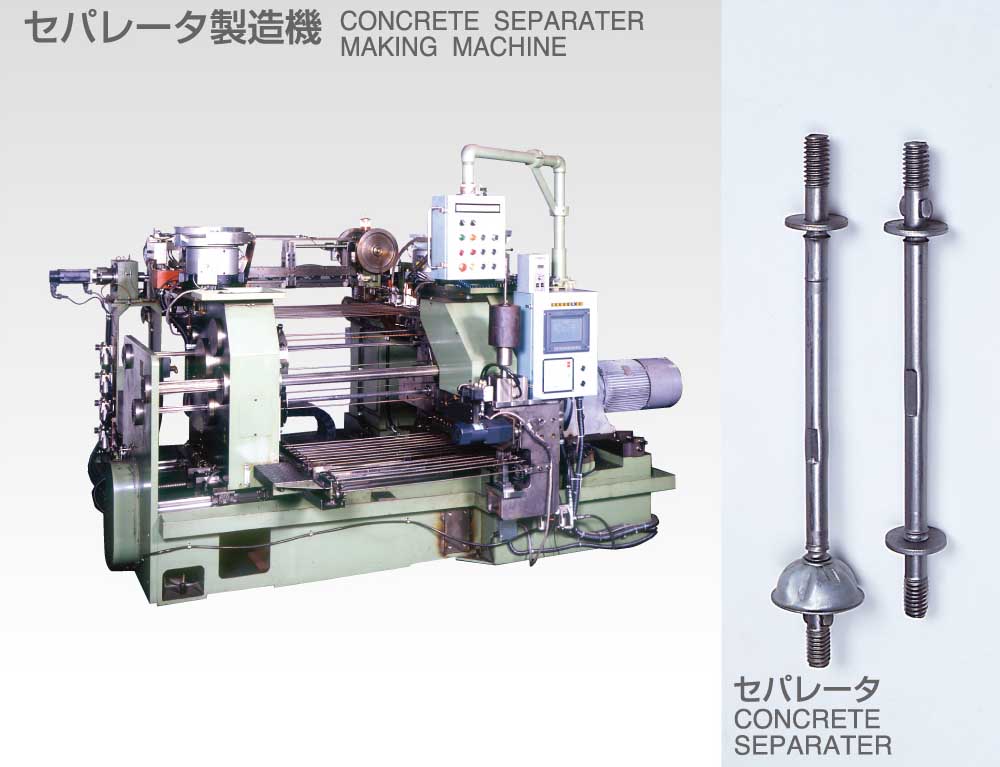

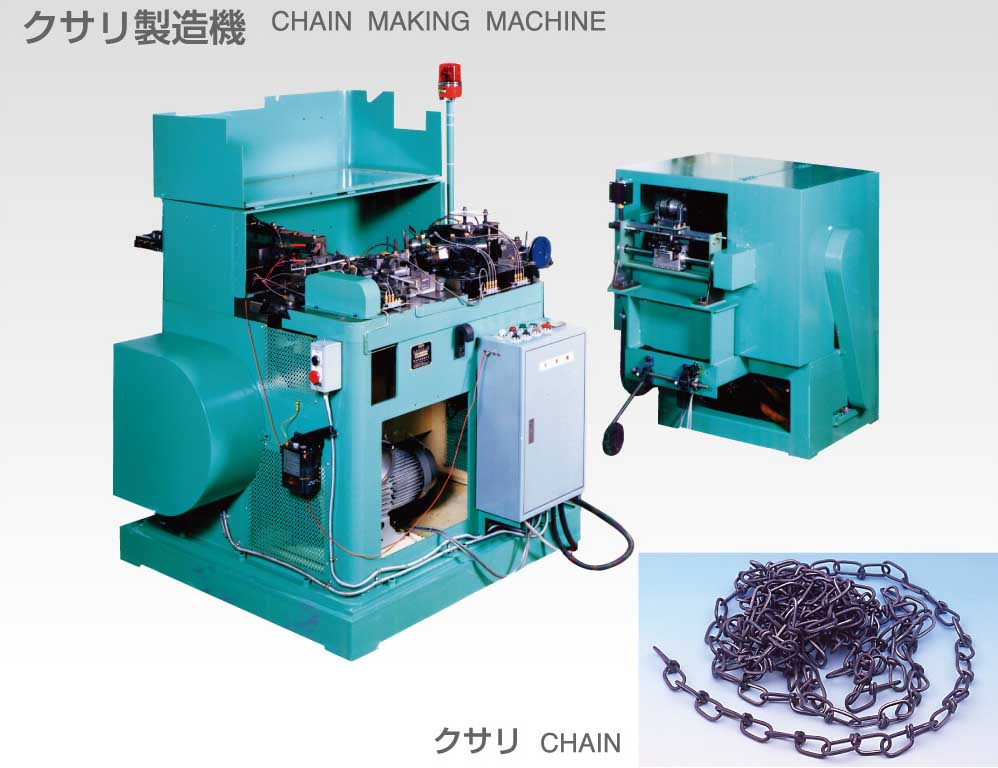

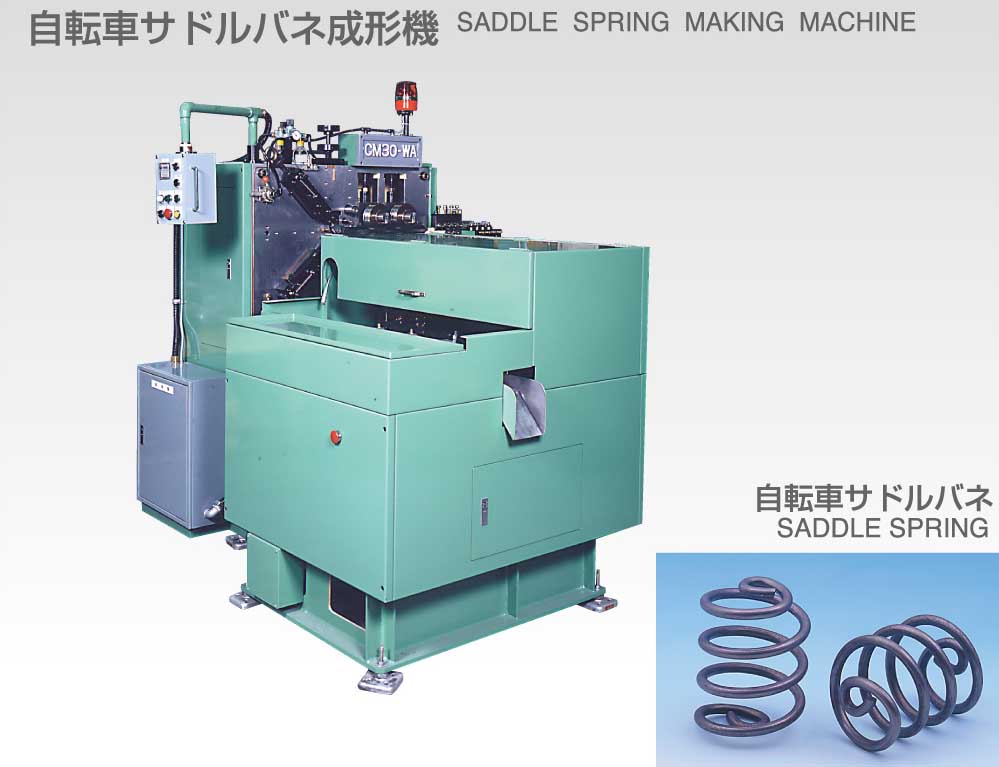

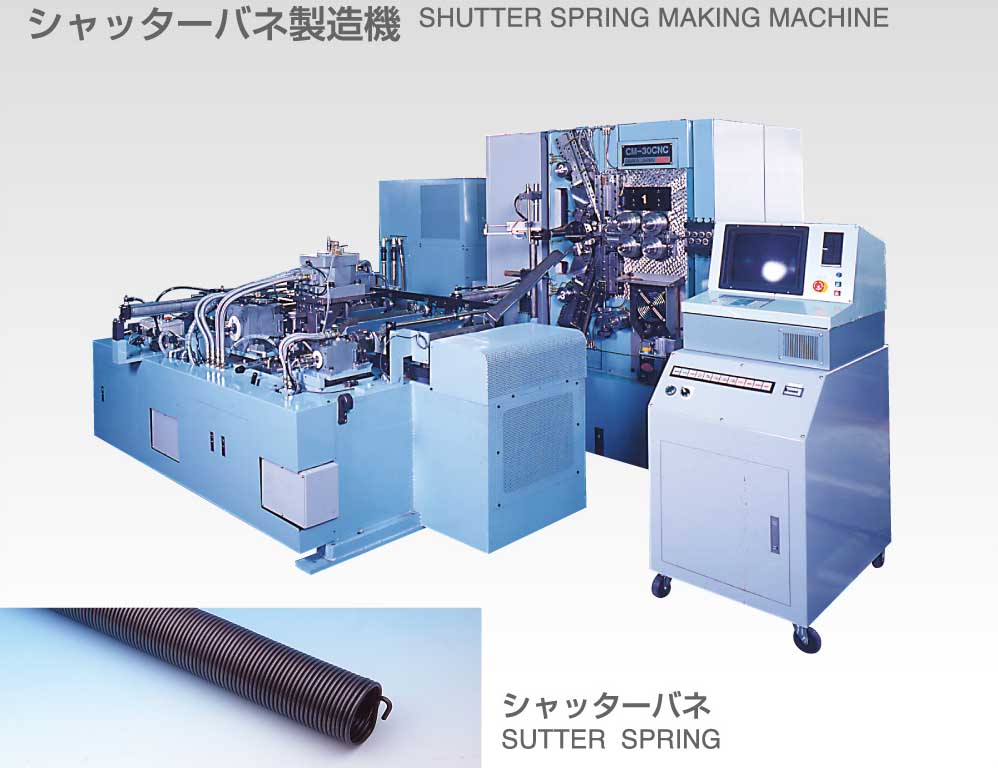

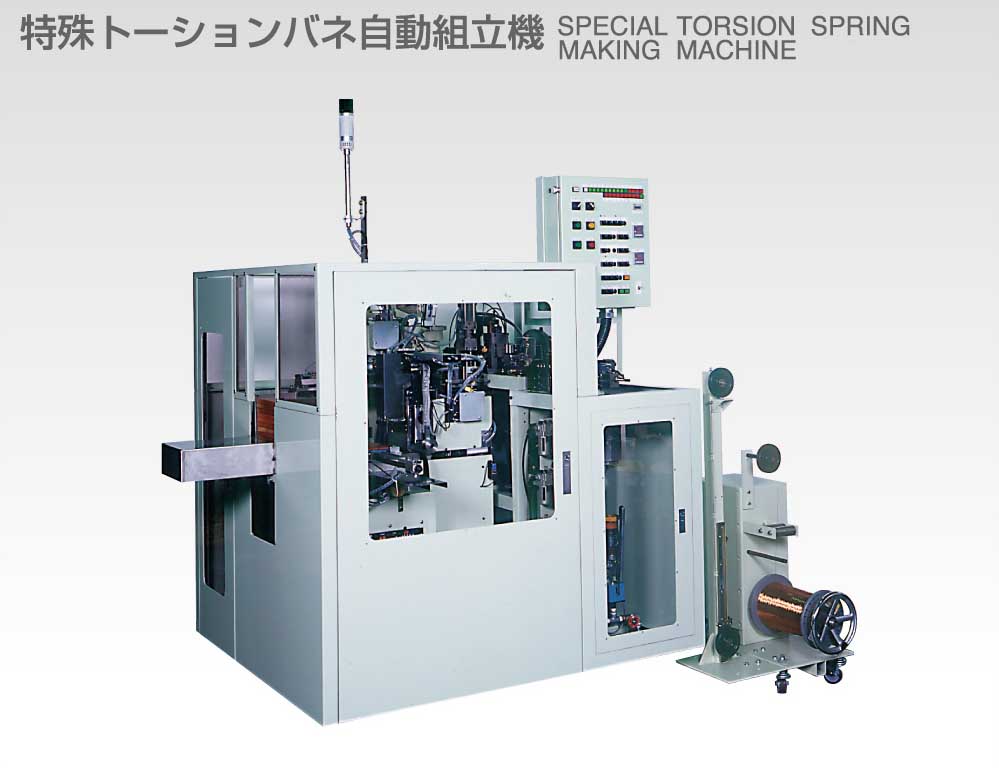

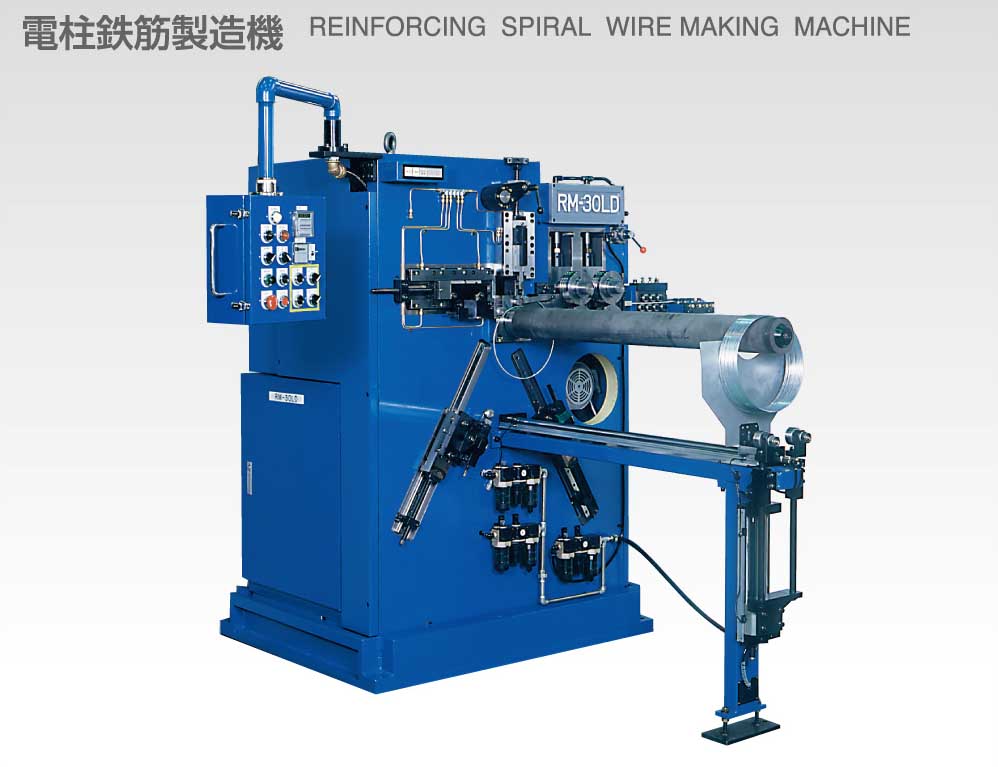

There machines are designed OKUNO’s technical experiences of Coiling Machine & Forming Machine.

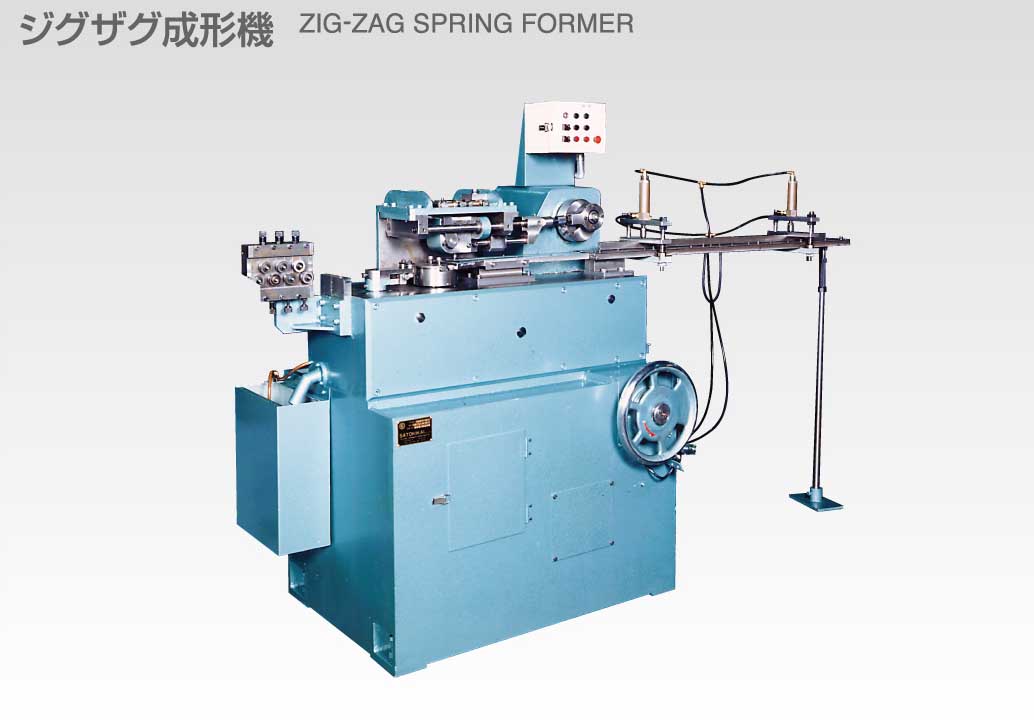

Item ZIG-ZAG SPRING FORMER
Wind dia  φ2.5~4.0mm
Pitch 15~40mm
Width 20~60mm
Motor 2.2kw
Machine dimension 720(W)×900(L)×1320(H)
Machine weight 750kg



-------------------------------------------------------------------------------------------------------

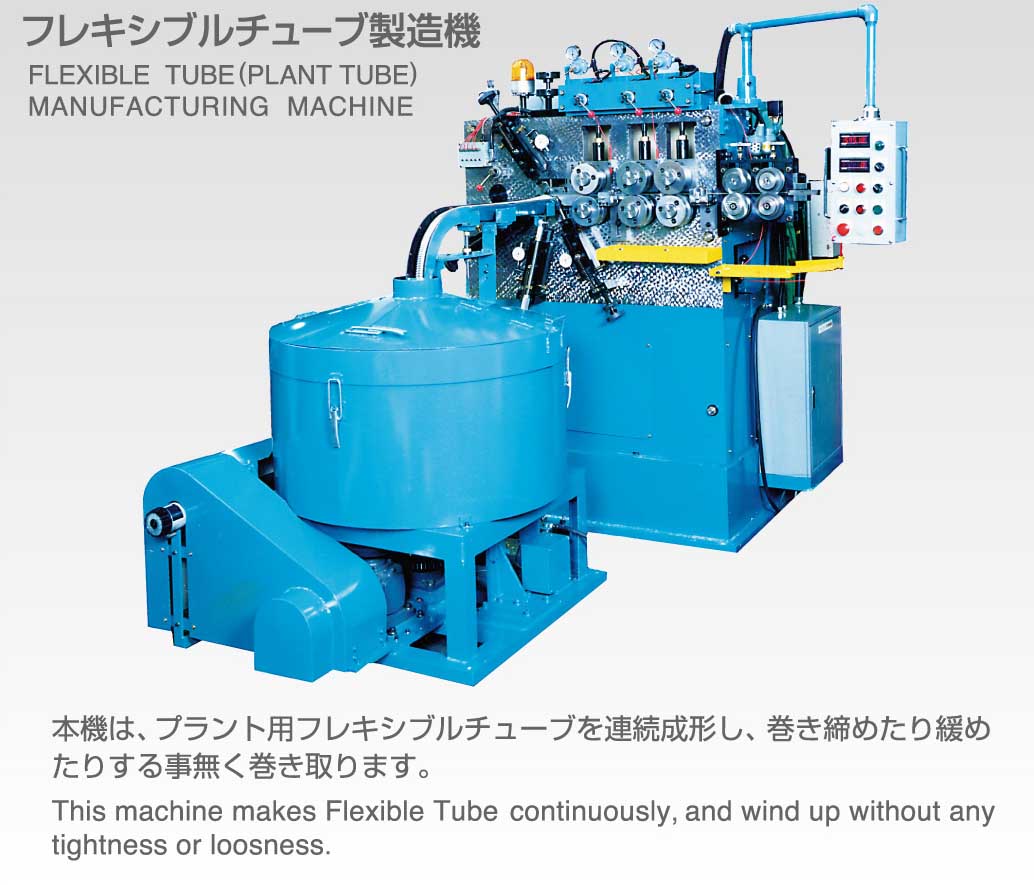

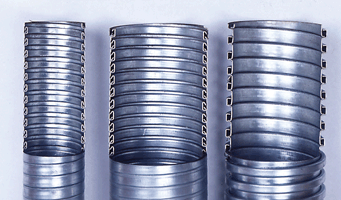

This machine makes Flexible Tube continuously,and wind up without any tightness or loosnness.



Item FT-5
Material size can be used 0.2~0.6mm (Thickness)  8.0~15mm (Widch)
Coil dia. can be used φ15~45mm
Materrial feed speed 10 ,16 ,25 ,40m/min.
Main motor 1.5kw 6P
Air pressure 4kg/㎠
Wind up device Drum size φ800mm
Wind up device Rotation speed 65~300rpm (No step)
Machine dimension
Machine
Wind up device

1500(W)×955(L)×1800(H)
900(W)×900(L)×1000(H)



-------------------------------------------------------------------------------------------------------

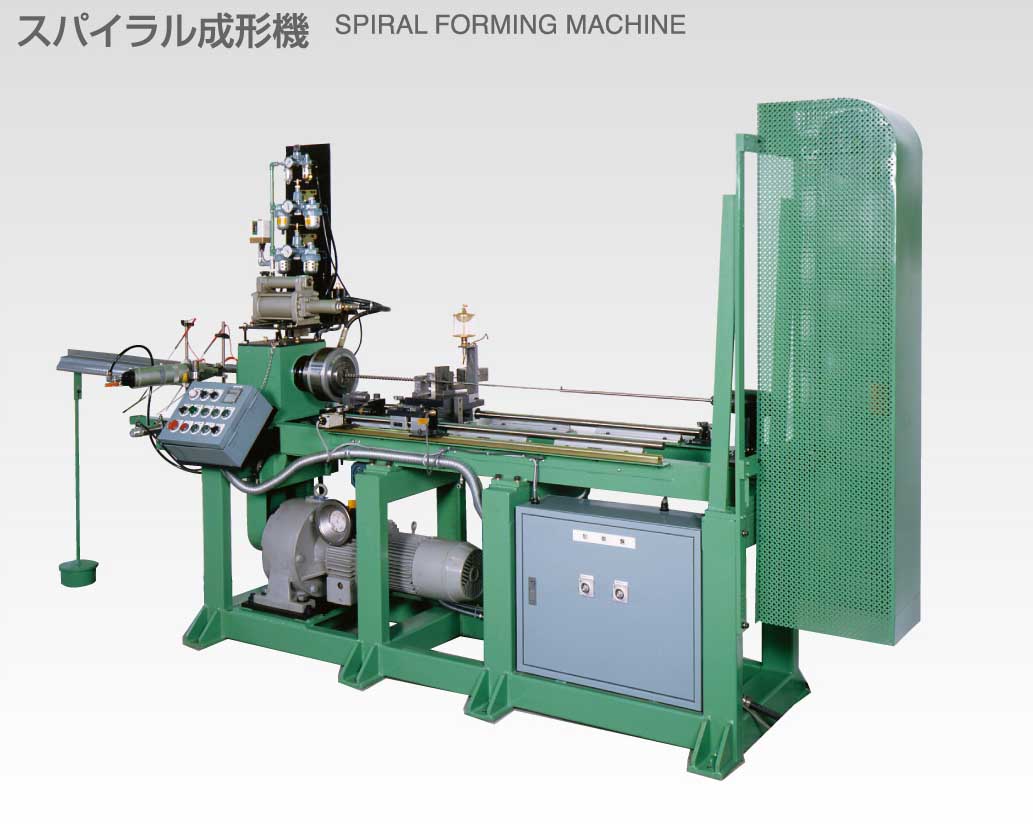

Item Spiral Forming Machine
Material size can be used 0.8~1.2mm (Thickness)  2.0~5.5mm (Widch)
Product to be used IDφ5.0~10.0 O.Dφ8.0~20.0mm
Product Length to be made 0~900mm
Winding direction Left・Right
Winding spindle r.p.m 38~150.r..p.m (No step)
Moter
Windle spindle
Pull back motor

2.2kw 4P
0.9kw 4P



-------------------------------------------------------------------------------------------------------
