The optional device is necessary for the spring that is on blue back.
-

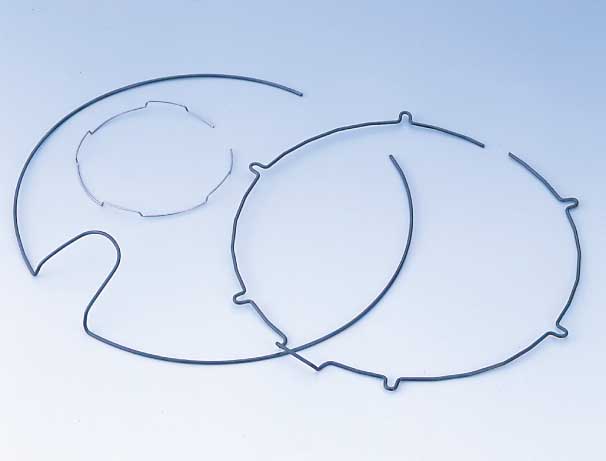

Ring(Round Wire)
-
No Pitch Coil
-
Compression Spring(Straight)
-
Compression Spring(Formed)
-
Extension Spring (One Side Hook)
-
Extension Spring
-
Torsion Spring
-

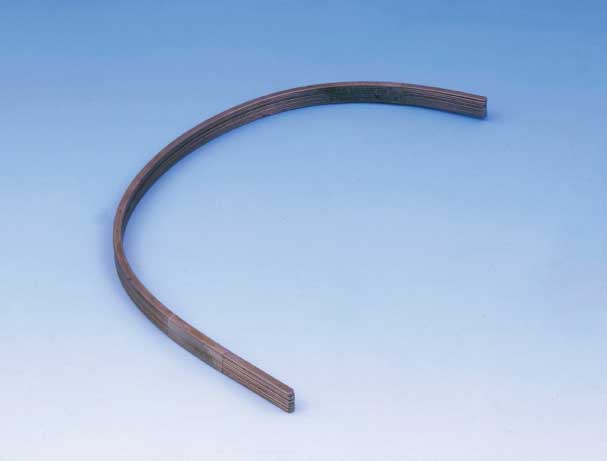

Flat Wire Spring(Unique Shape)
-
Formed Wire Spring
-
Compression Spring(Shaped)
-

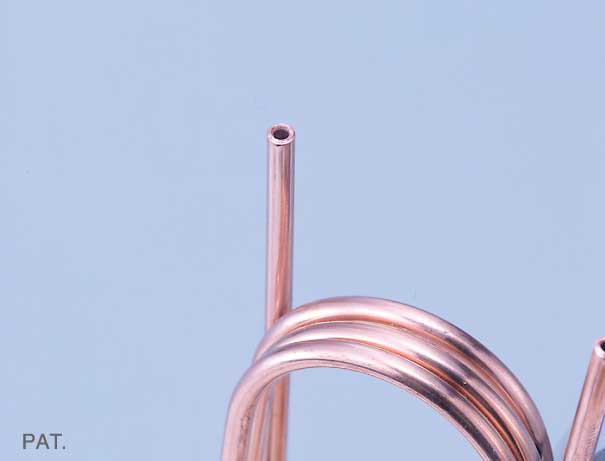

Copper Wire Coil (Ends Decoated)
-

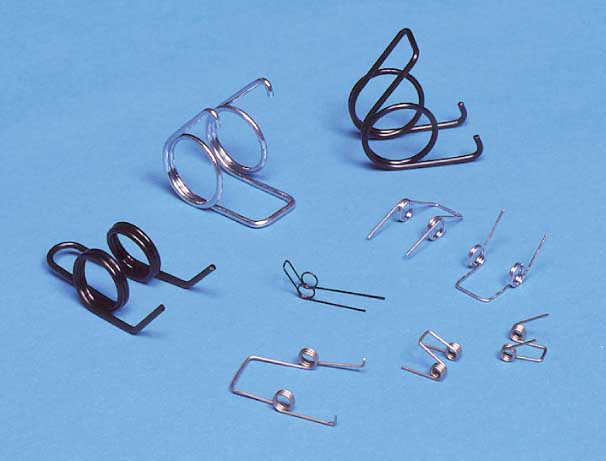

W Torsion Spring
-
Motor Spring(Constant Pitch)
-
Compression Spring(Tapered)
-

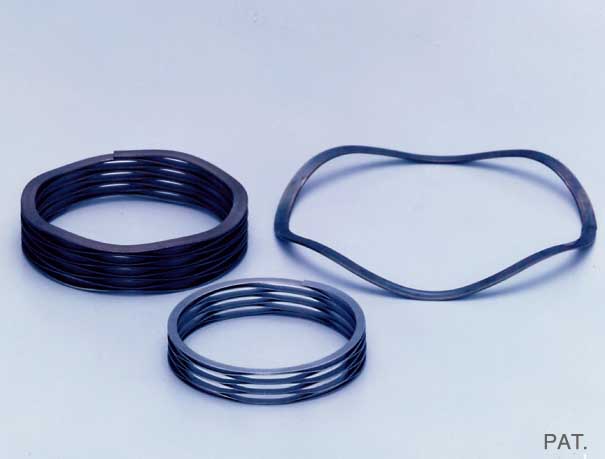

Weve Spring
-
Oval Coil Spring

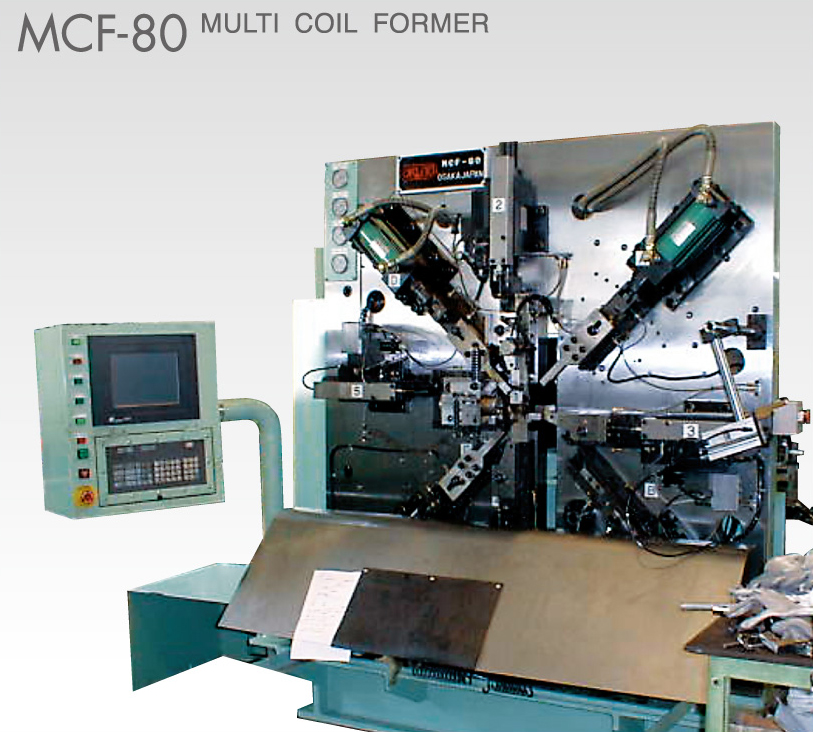

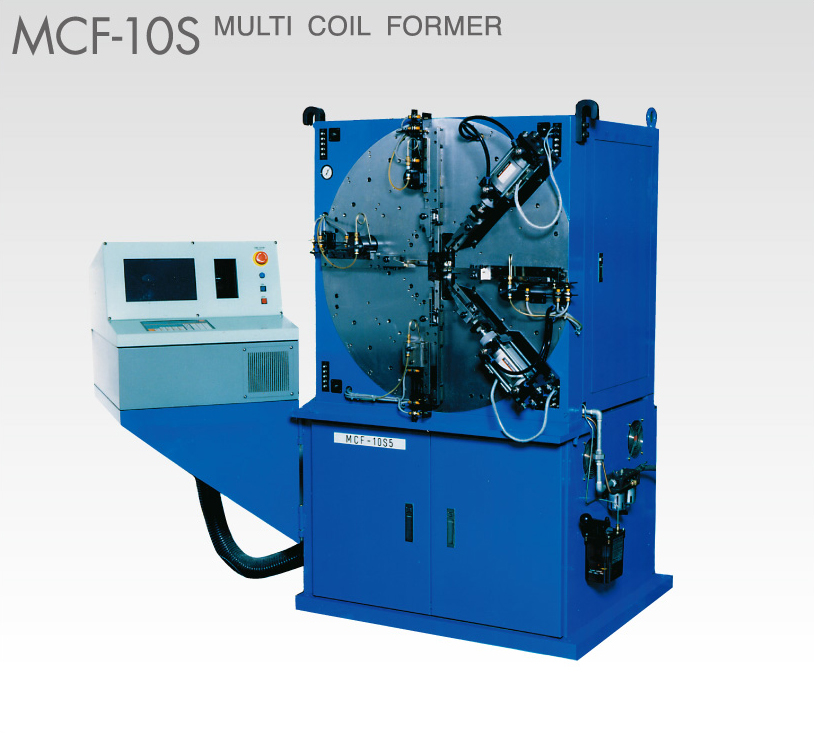

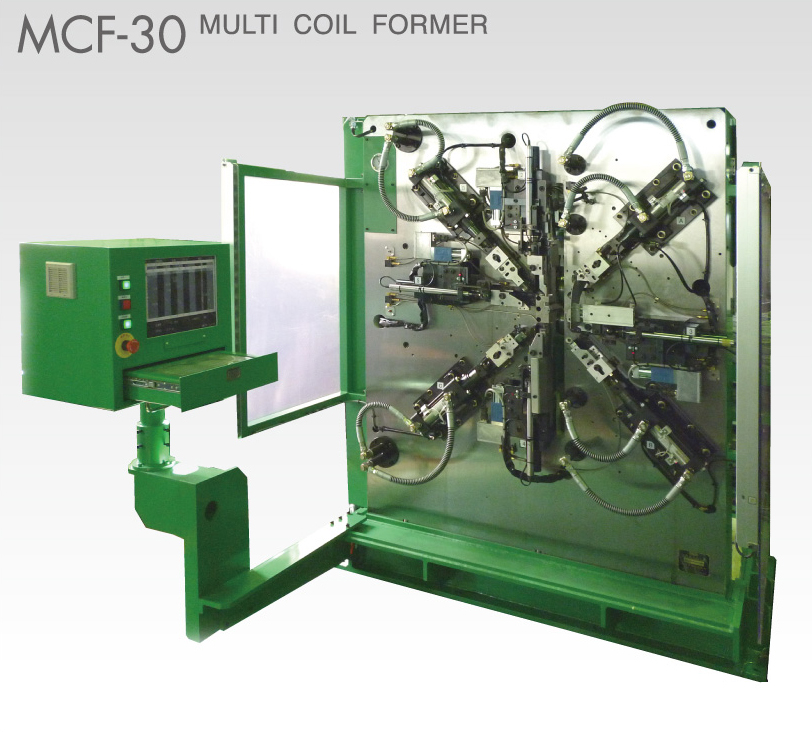

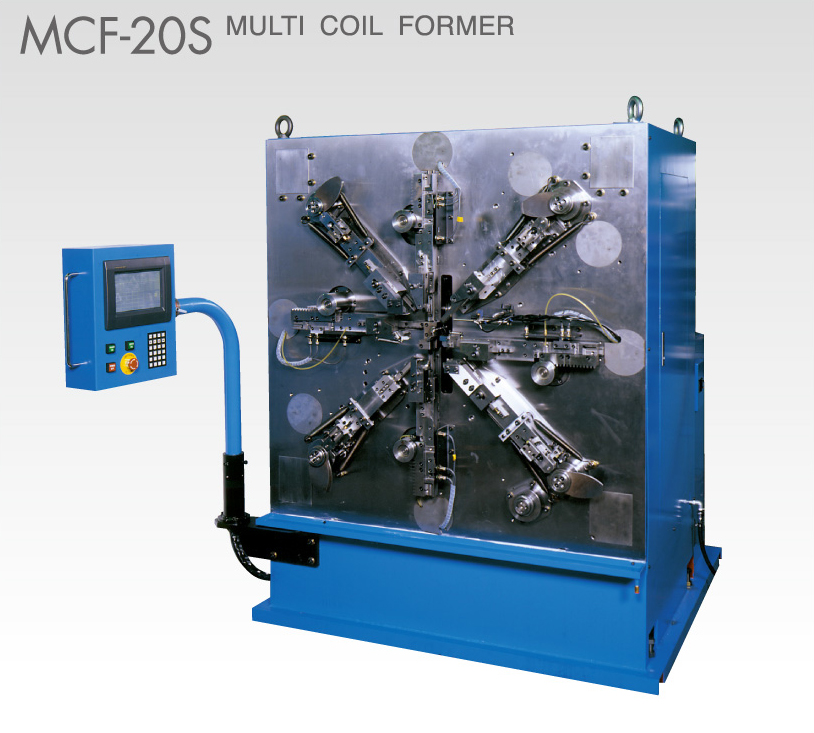

Item | MCF-10S | MCF-20S | MCF-30 | MCF-80 |
---|---|---|---|---|
Wire diameter to be used | φ0.3~1.0mm | φ0.6~2.0mm | φ0.8~3.0mm | φ3.0~8.0mm |
Wire feeding speed | 0~400mm/sec. | 0~520mm/sec | 0~430mm/sec | 0~650mm/sec |
Accurcy of wire feeding | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
Max.wire feed length | Free | Free | Free | Free |
Main motor | 5 axis total 5.4kw | 6 axis total 23.3kw | 15kw 4p | 22kw |
Machine dimension | 1500(W)×850(L)×1500(H) | 1900(W)×1400(L)×1700(H) | 2000(W)×2600(L)×2050(H) | 1870(W)×2350(L)×2035(H) |
