The optional device is necessary for the spring that is on blue back.
-
Ring(Round Wire)
-
No Pitch Coil
-

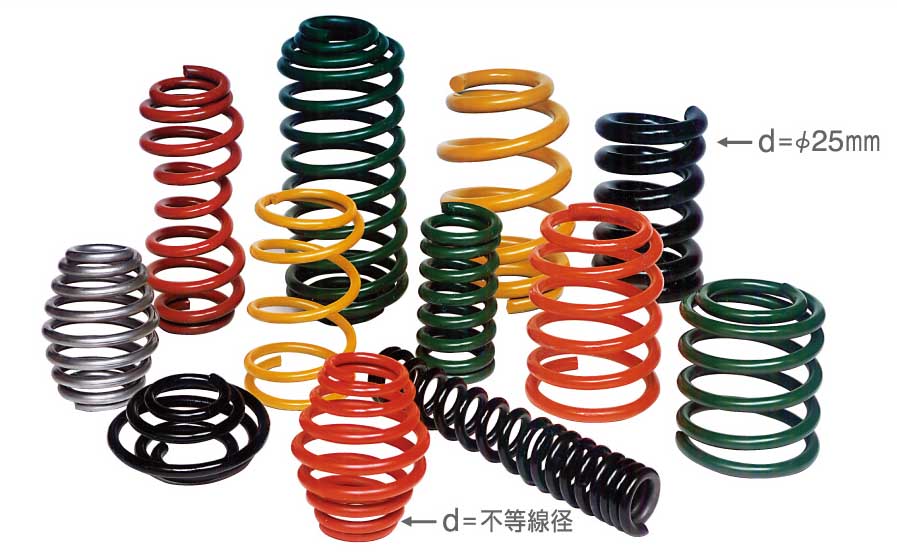

Compression Spring(Straight)
-
Compression Spring(Formed)
-
Extension Spring (One Side Hook)
-
Extension Spring
-
Torsion Spring
-
Formed Wire Spring
-

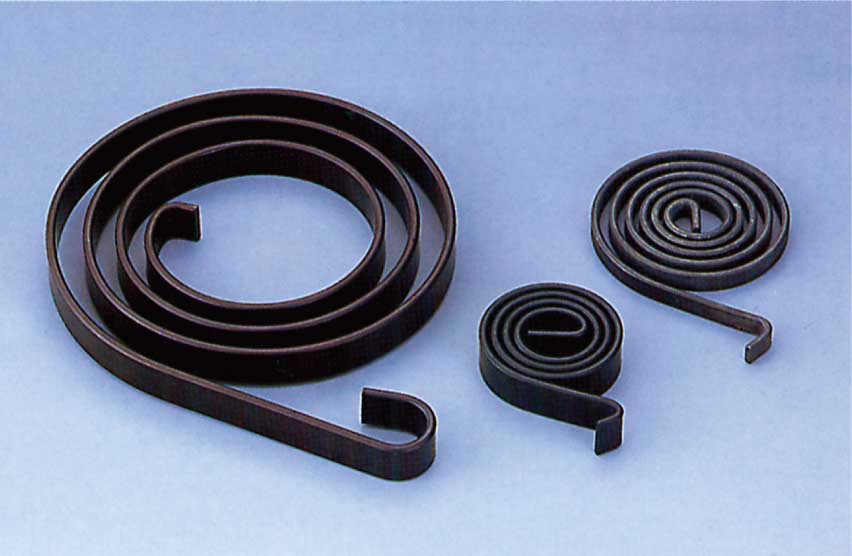

Motor Spring(Constant Pitch)
-
Compression Spring(Tapered)
-

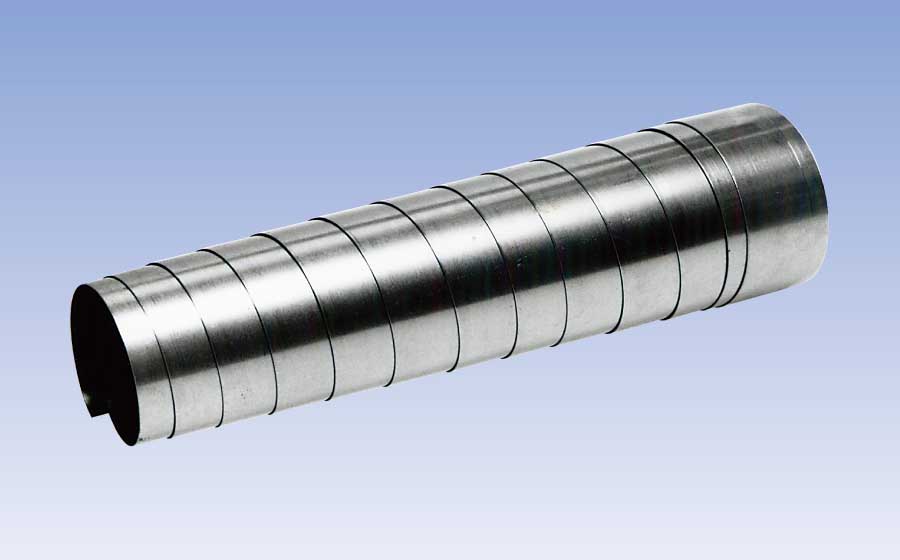

Control Tube
-
Compression Spring(Shaped)
-
Oval Coil Spring

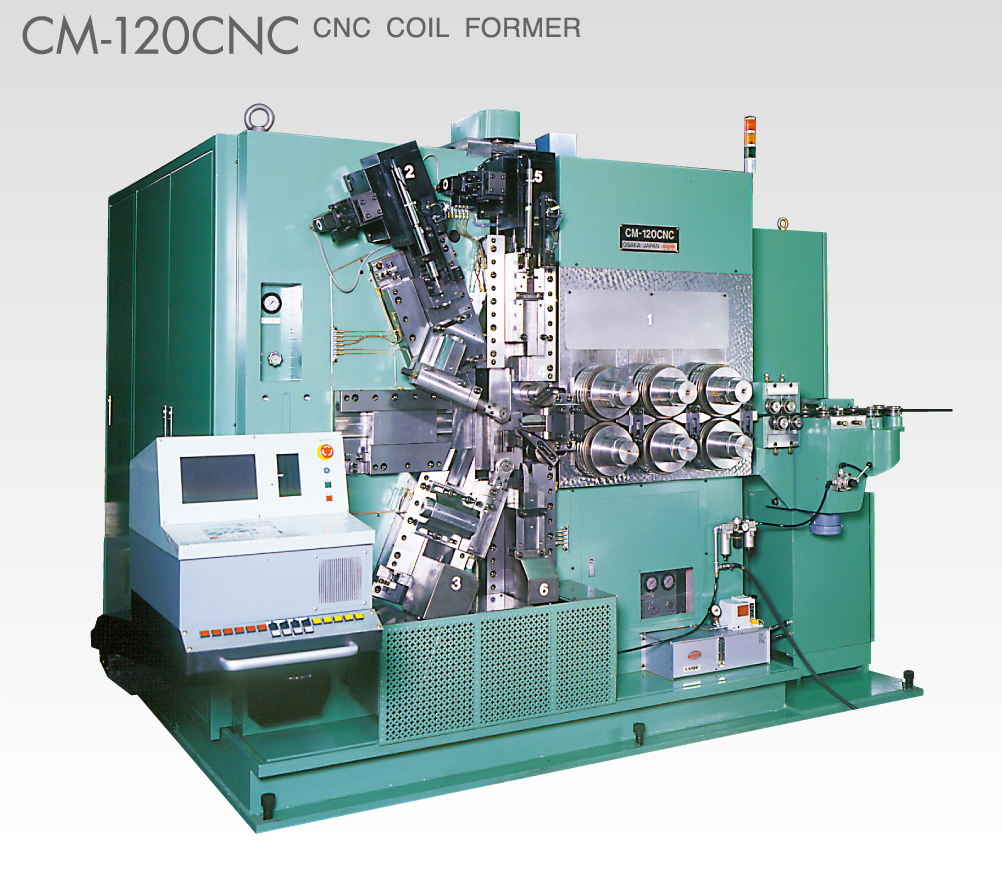

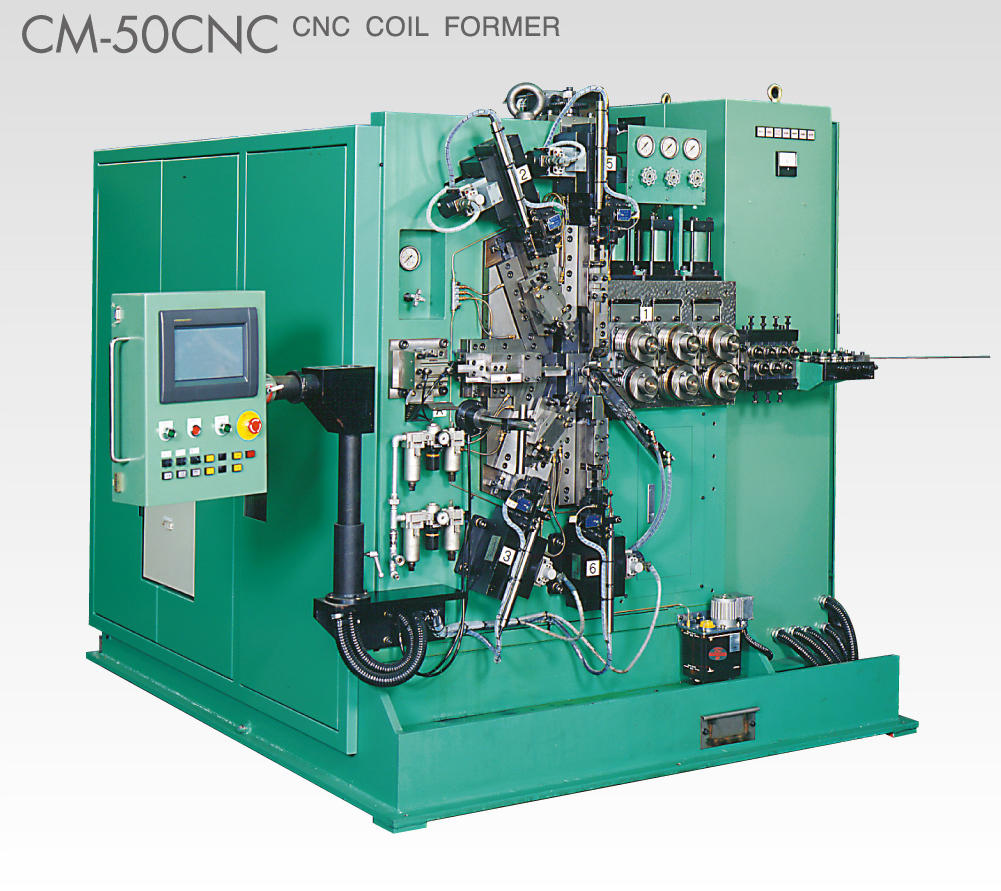

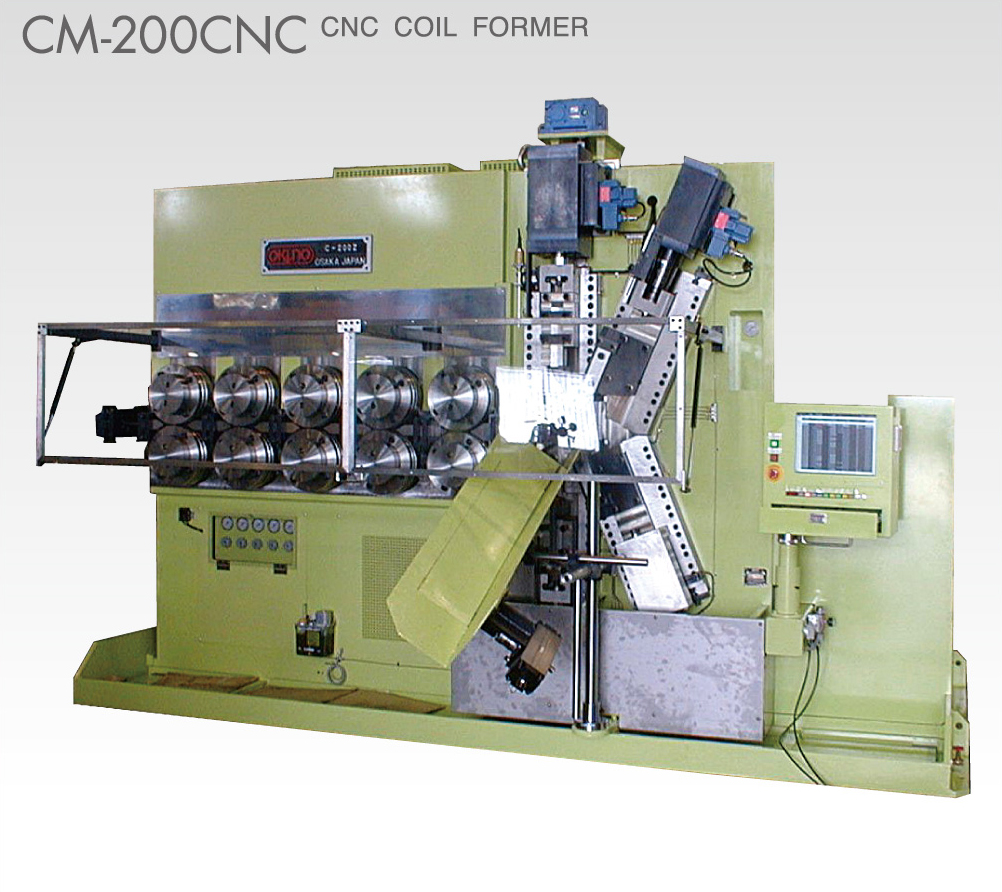

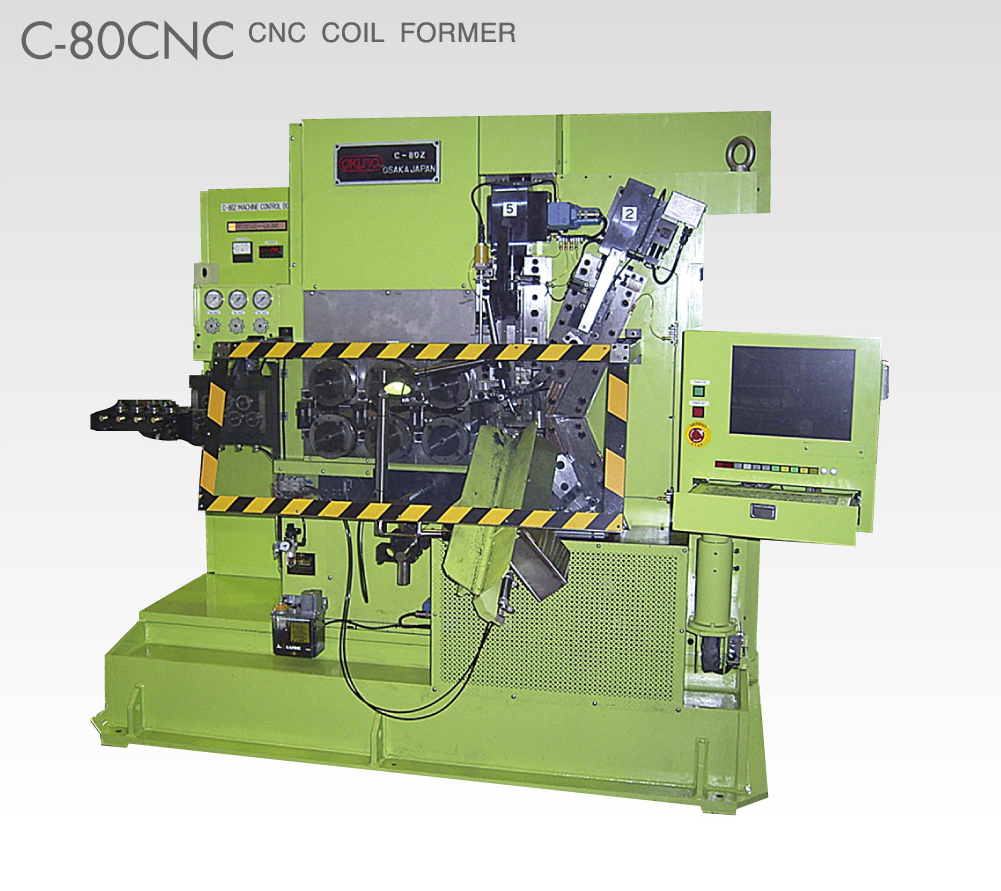

Item | CM-50CNC | CM-80CNC | CM-120CNC | CM-200CNC |
---|---|---|---|---|
Wire diameter to be used | φ2.0~5.0mm | φ3.0~8.0mm | φ6.0~12.0mm | φ10.0~20.0mm |
Wire feeding speed | 100m/min(MAX) | 80m/min(MAX) | 80m/min(MAX) | 50m/min(MAX) |
Accurcy of wire feeding | 0.1mm | 0.1mm | 0.1mm | 0.1mm |
Max.wire feed length | Free | Free | Free | Free |
Max.coiling outer diameter | φ75mm | φ90mm | φ140mm | φ180mm |
Main motor | 22kw 4p | 37kw 4p | 55kw 4p | 75kw 4p |
Machine dimension | 2100(W)×2000(L)×2000(H) | 2300(W)×2300(L)×2000(H) | 2700(W)×3200(L)×2500(H) | 3000(W)×3500(L)×2700(H) |
