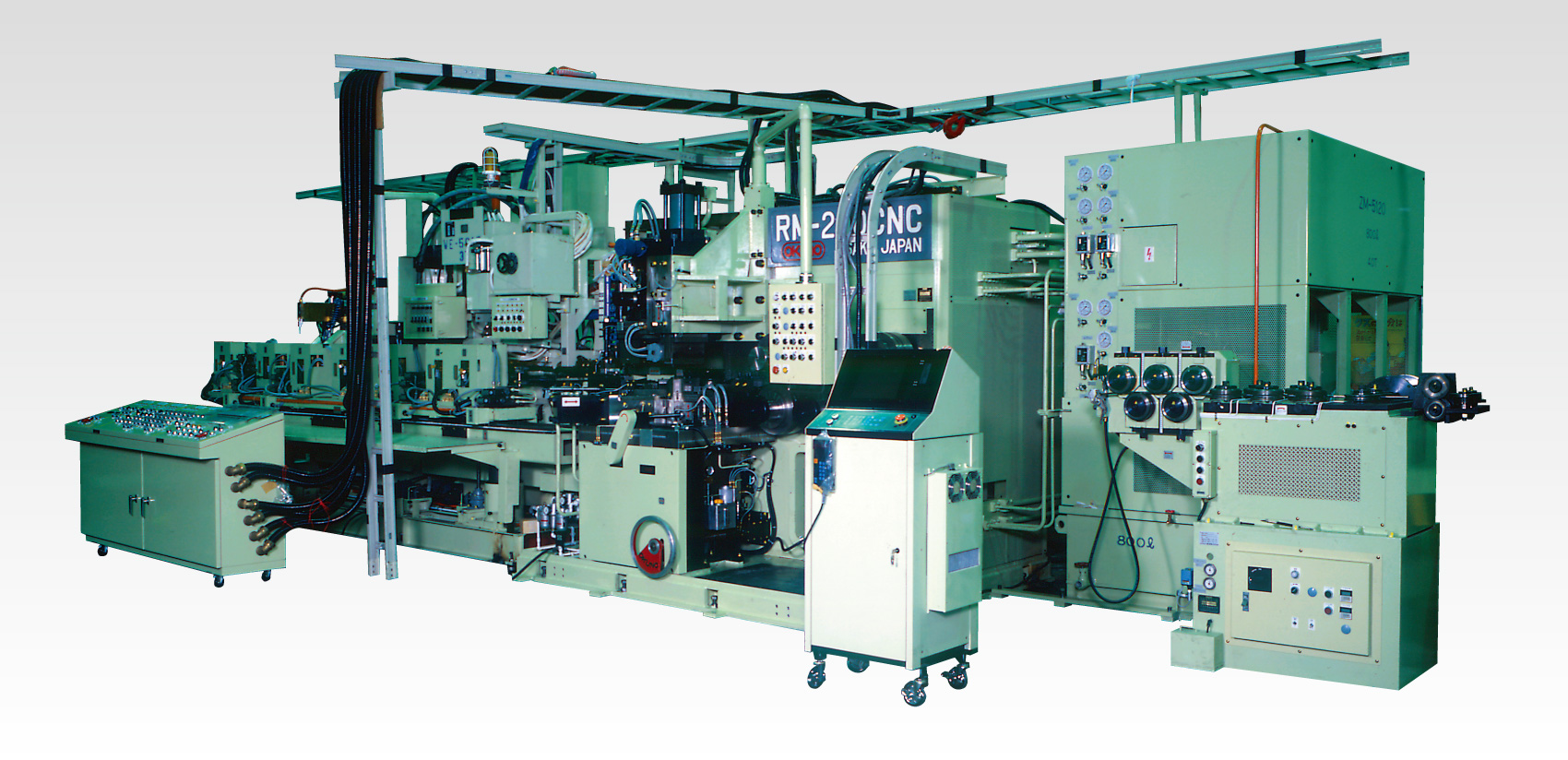

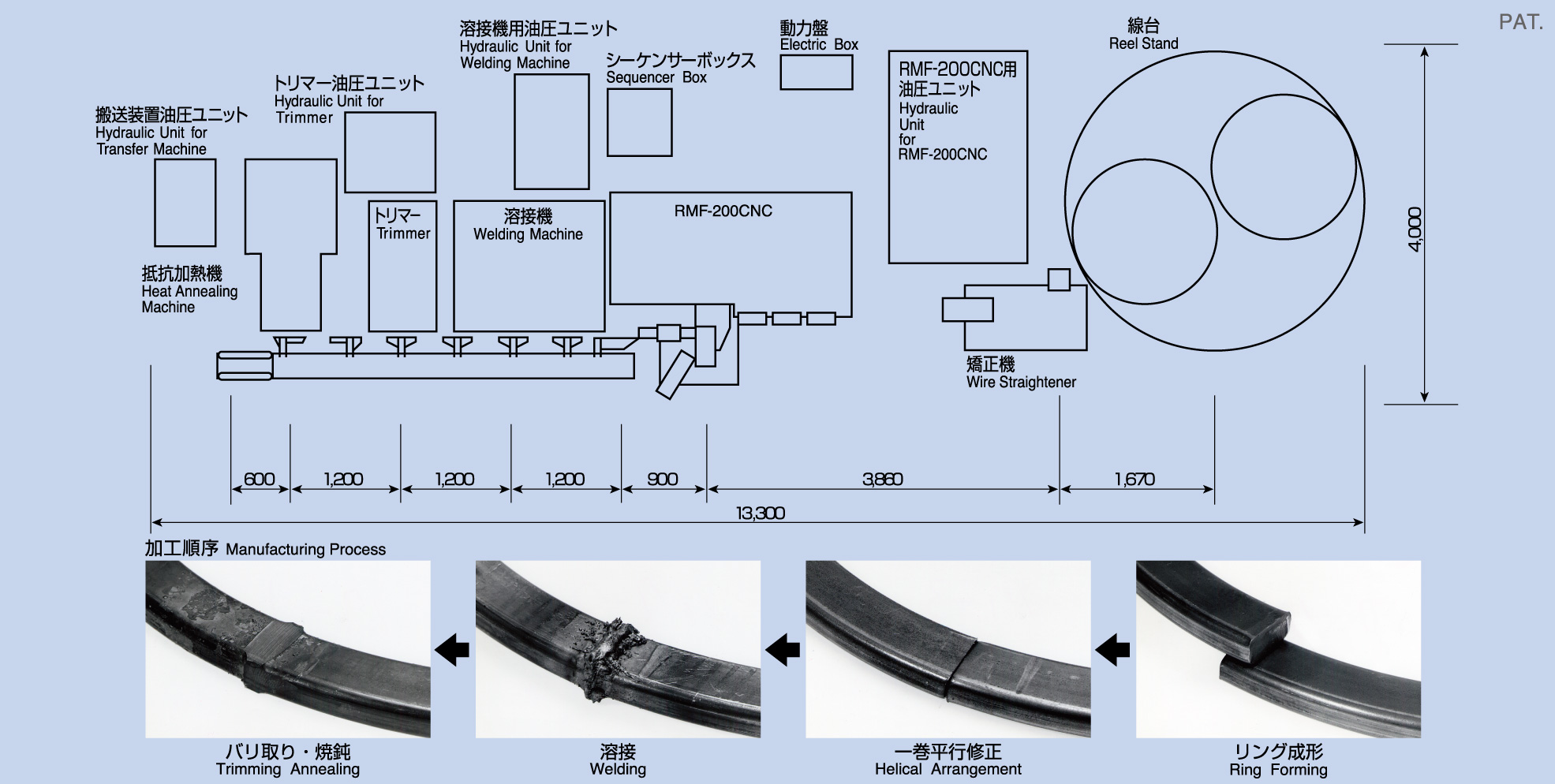

本ライン機は異形線材をリング加工・溶接加工・バリ取り加工及び焼とん処理の工程をトランスファー装置により搬送する自動ライン機です。
The purpose of this linear equipment is to make big size flat ring. This
big size flat ring is made from square wire. And welding & de-burring
& annealing process will be done after coiling by using the automatic
transfering equipment.


項 目 Item |
RMF-120CNC | RMF-200CNC |
---|---|---|
加工可能材料断面積 Sectional area of wire to be usd |
120㎟ | 300㎟ |
加工可能最大コイル外径 Max.coilling outer diameter | φ350mm | φ350mm |
切断能力 Cutting power |
20t | 24t |
機械大きさ Machine dimension |
2300(W)×2600(L)×2200(H) | 2500(W)×2600(L)×2300(H) |
