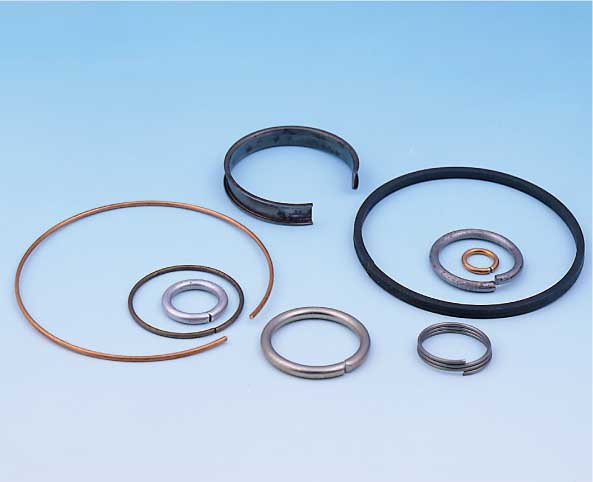

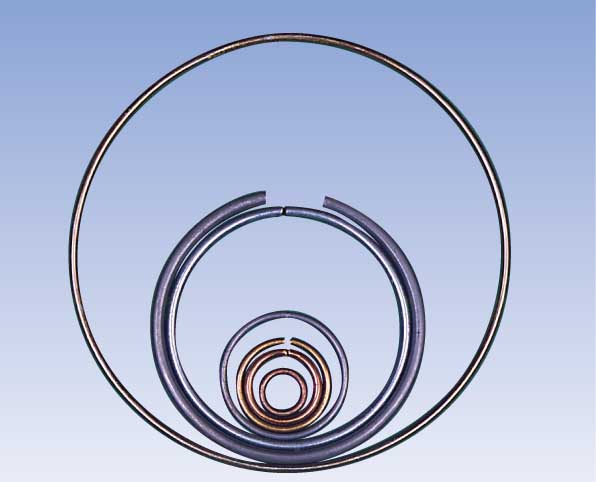

丸線より1巻もしくは2巻のリングを製作するのに適した機械です。RM-S型は線送り機構に、数値制御を取り入れた新世代型の機械です。
This machine is suitable for making 1 or 2 tuen ring by round wire. NC
wire feed system is adopted on RM-S type machine. It's new generation.

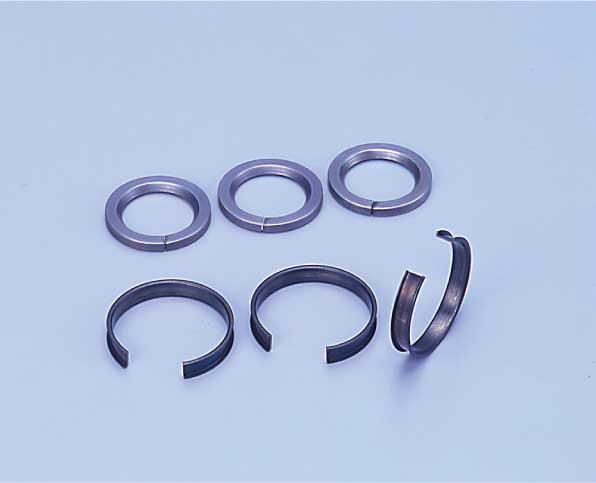

ブルーバックのスプリングはオプション機能です。
The optional device is necessary for the spring that is on blue back.



項 目 Item |

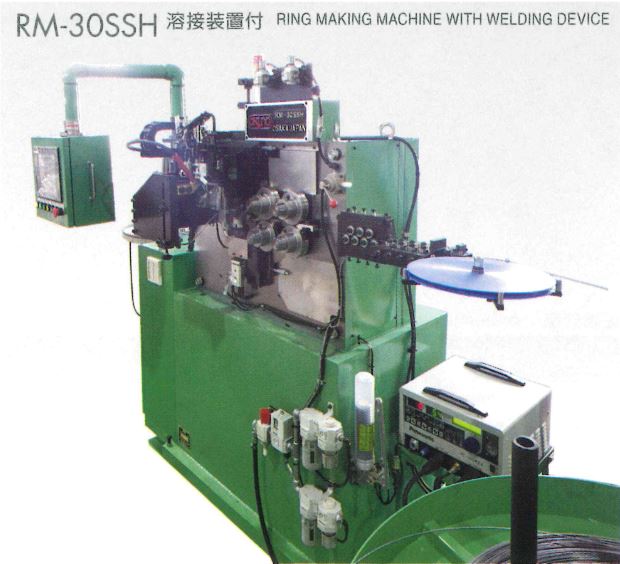

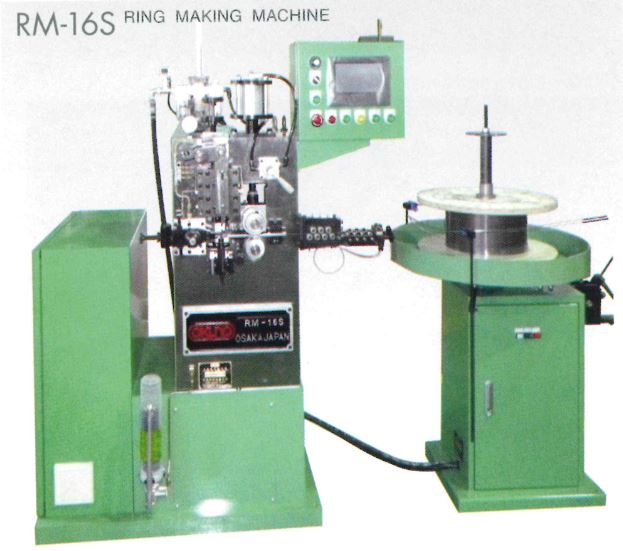

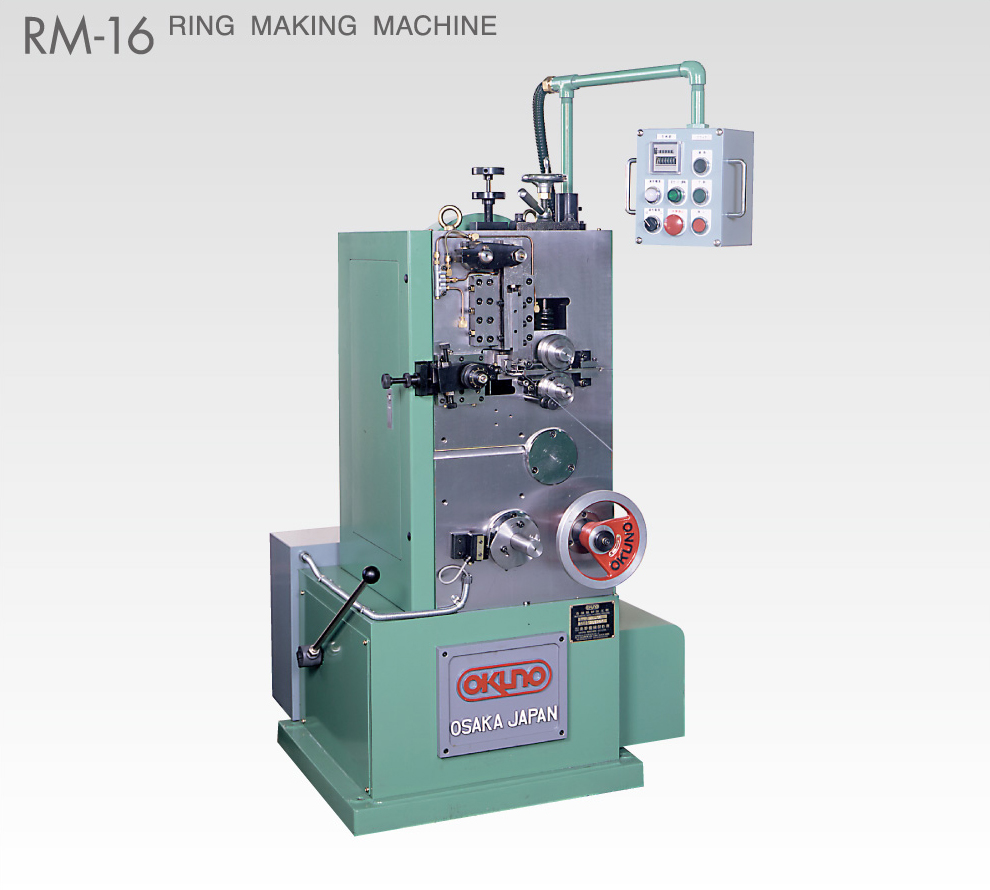

RM-16 | RM-30 | RM-16S | RM-30SSH |
---|---|---|---|---|
加工可能線径 Wire diameter to be used |
φ0.3~1.6mm | φ0.8~3.0mm | φ0.3~1.6mm | φ0.8~3.0mm |
加工可能最大コイル外径 Max.coilling outer diameter | φ20mm | φ50mm | φ20mm | φ40〜200mm |
機械大きさ Machine dimension |
630(W)×750(L)×1400(H) | 1065(W)×1030(L)×1850(H) | 900(W)×750(L)×1600(H) | 1800(W)×1000(L)×1950(H) |
※生産スピードは60Hz時の場合です。Production rate is in the case of 60Hz.
項 目 Item |

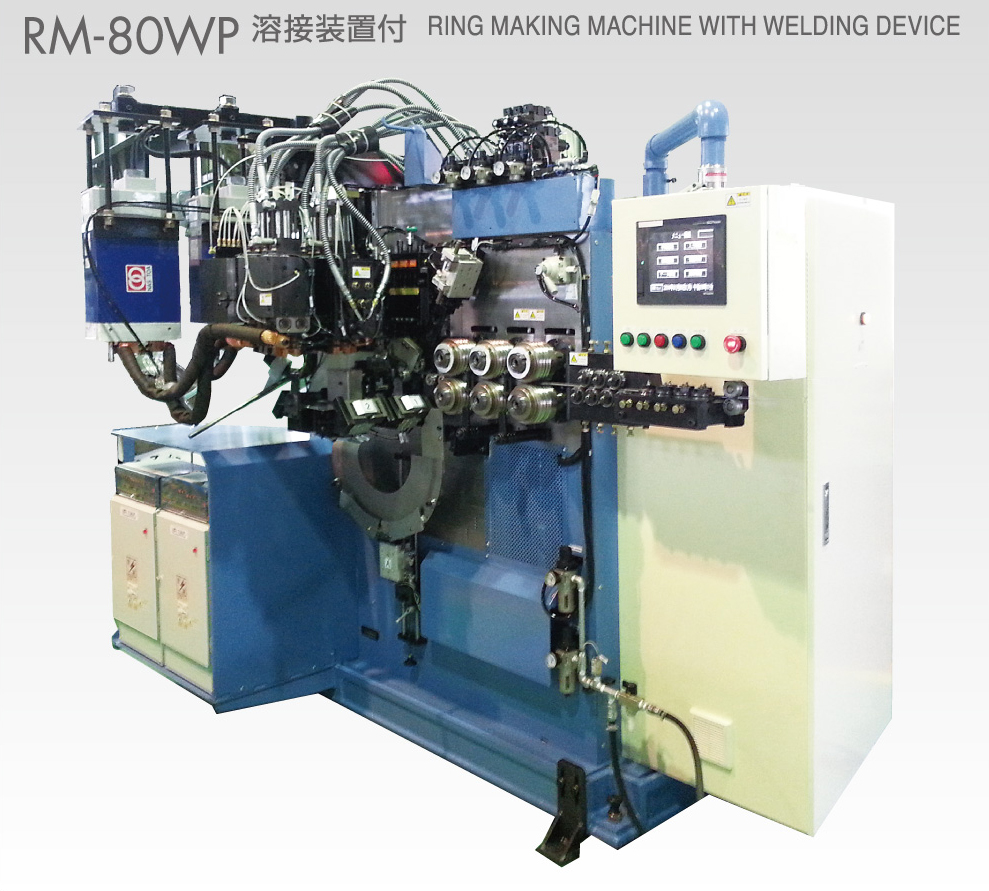

RM-30WP | RM-50WP | RM-80WP |
---|---|---|---|
加工可能線径 Wire diameter to be used |
φ0.8~3.0mm | φ2.0~5.0mm | φ3.0~8.0mm |
加工可能最大コイル外径 Max.coilling outer diameter |
MAXφ300mm | MAXφ500mm | MAXφ800mm |
機械大きさ Machine dimension |
1300(W)×1200(L)×1850(H) | 1600(W)×1350(L)×2000(H) | 1800(W)×1550(L)×2150(H) |
